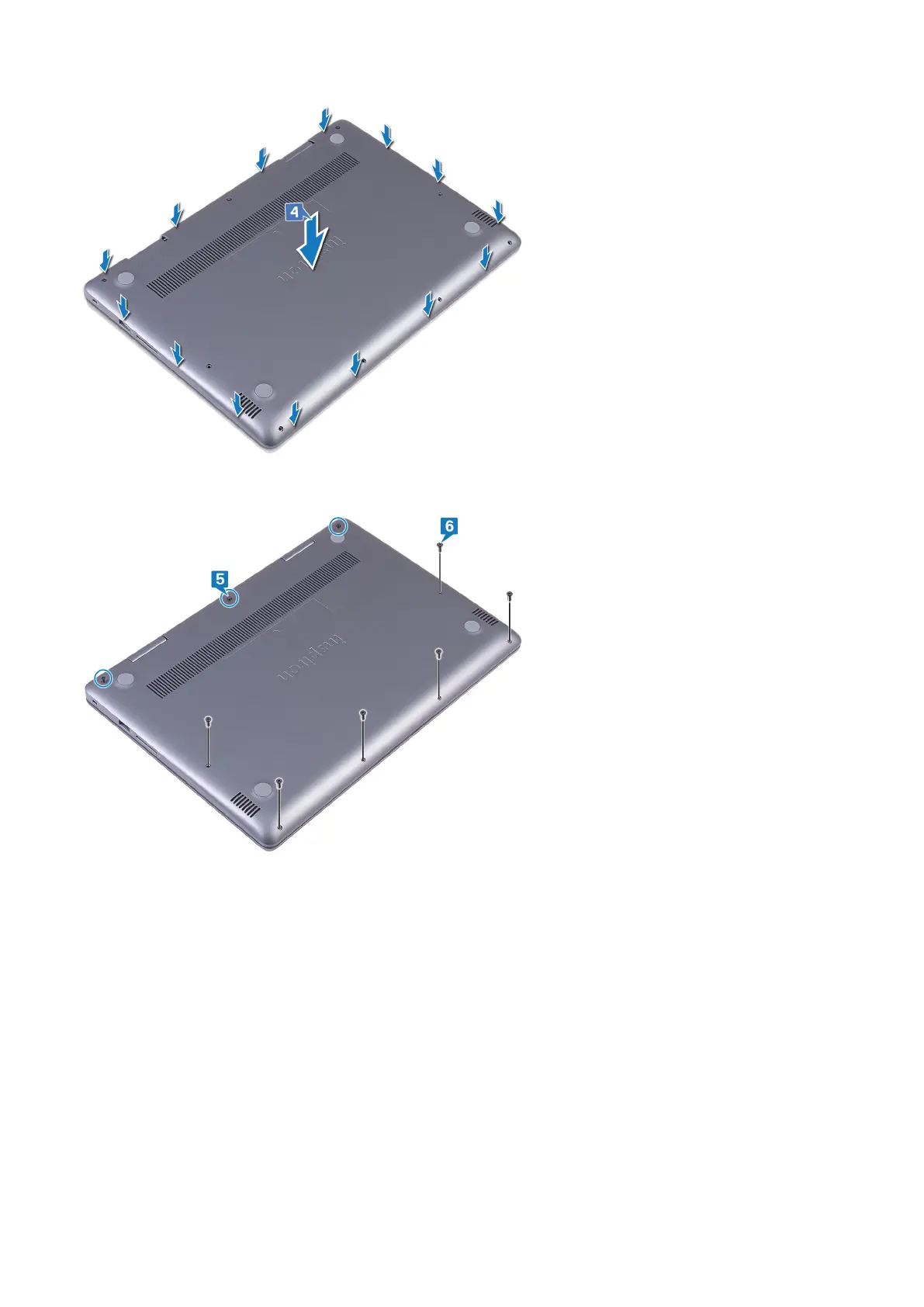

5. Tighten the three captive screws that secure the base cover to the palm-rest and keyboard assembly.

6. Replace the six screws (M2.5x6) that secure the base cover to the palm-rest and keyboard assembly.

Replacing the base cover 19
