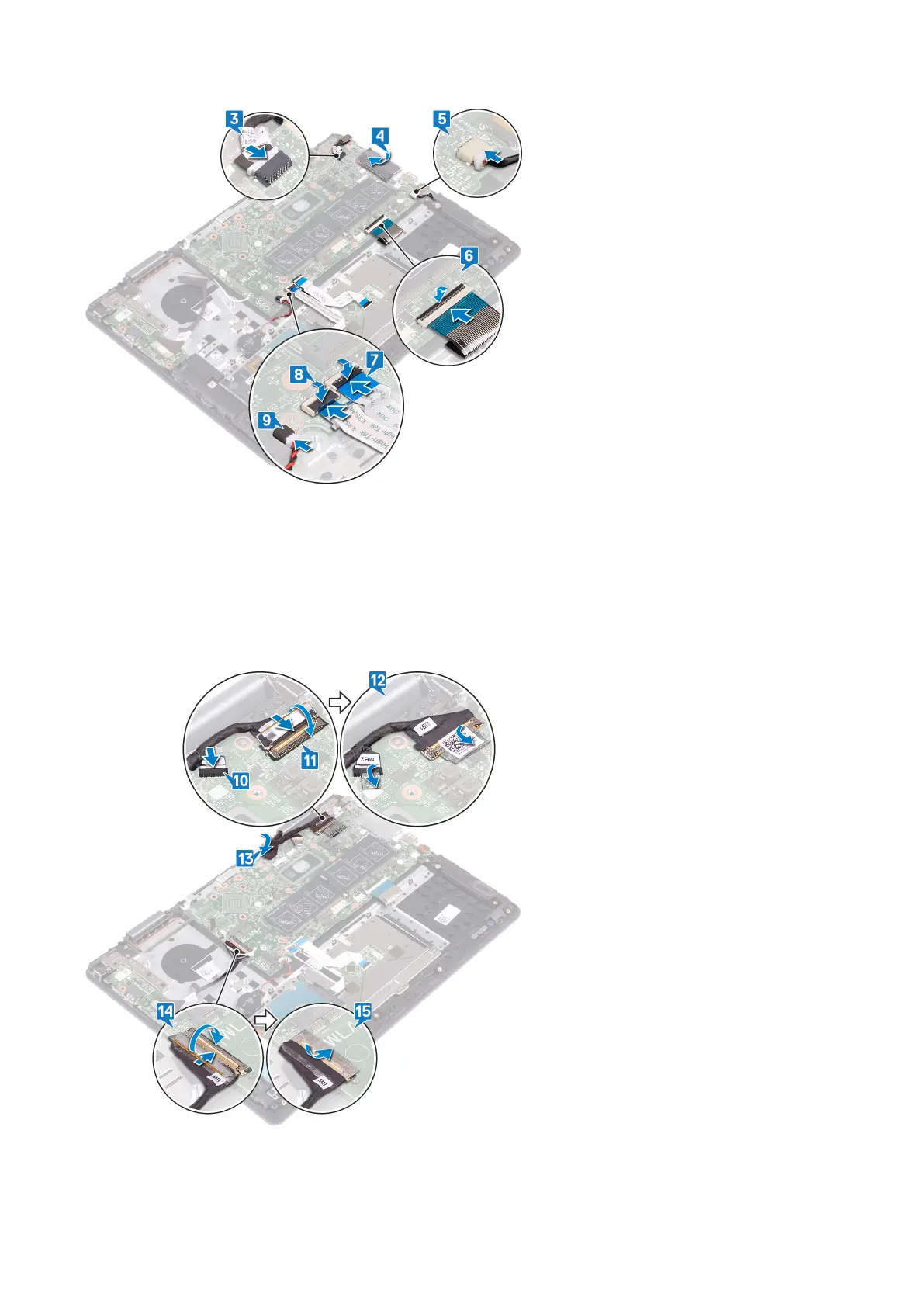

10. Connect the touch-screen board cable to the system board.
11. Slide the display cable into the connector on the system board and close the latch to secure the cable.
12. Adhere the tapes that secure the display cable and touch-screen board cable to their respective connectors on the system
board.
13. Route the touch-screen board cable and the display cable through the routing guides on the palm-rest and keyboard
assembly.
14. Slide the I/O-board cable into the connector on the system board and close the latch to secure the cable.
15. Adhere the tape that secures the I/O-board cable to the system board.
74
Replacing the system board
