114 Installing System Components

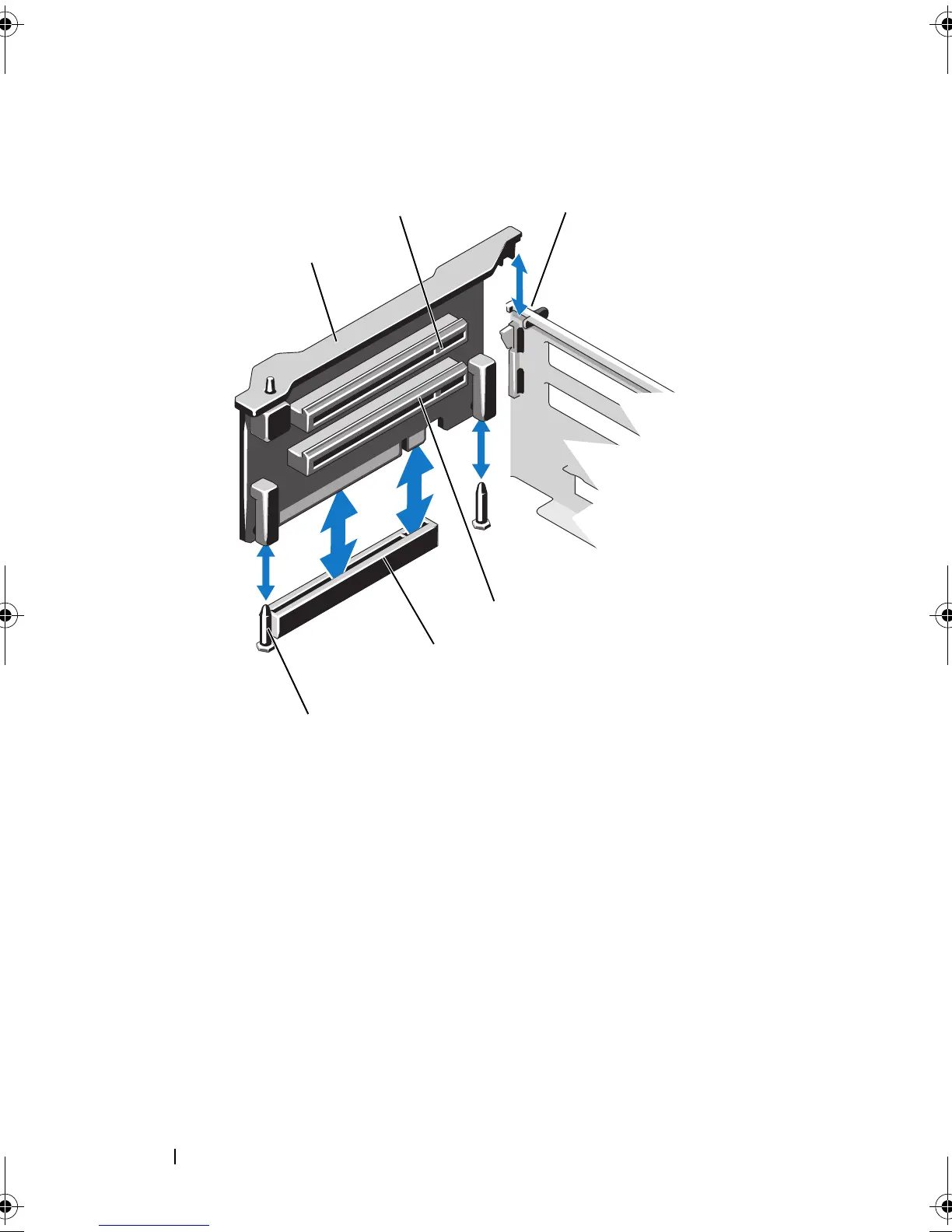

Figure 3-18. Installing and Removing Expansion-Card Riser 2
Installing Expansion-Card Riser 2
1 Align the expansion-card riser with the riser guide pins on the system
board and the slot on the chassis. See Figure 3-17.
2 Lower the expansion-card riser into place until the expansion-card riser
connector is fully seated.
3 If applicable, replace the expansion card(s). See "Installing an Expansion
Card" on page 108 on page 72.
1 expansion-card riser 2 2 expansion-card slot 5
3 slot on chassis 4 expansion-card slot 6
5 riser 2 connector on system board 6 riser guide pins (2)
1
3
5
6
2
4
book.book Page 114 Wednesday, February 17, 2010 6:17 PM

Dell PowerEdge E05S Specifications

General

Product Name	Dell PowerEdge E05S
Category	Server
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Power Supply	495W
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
