Installing System Components 119

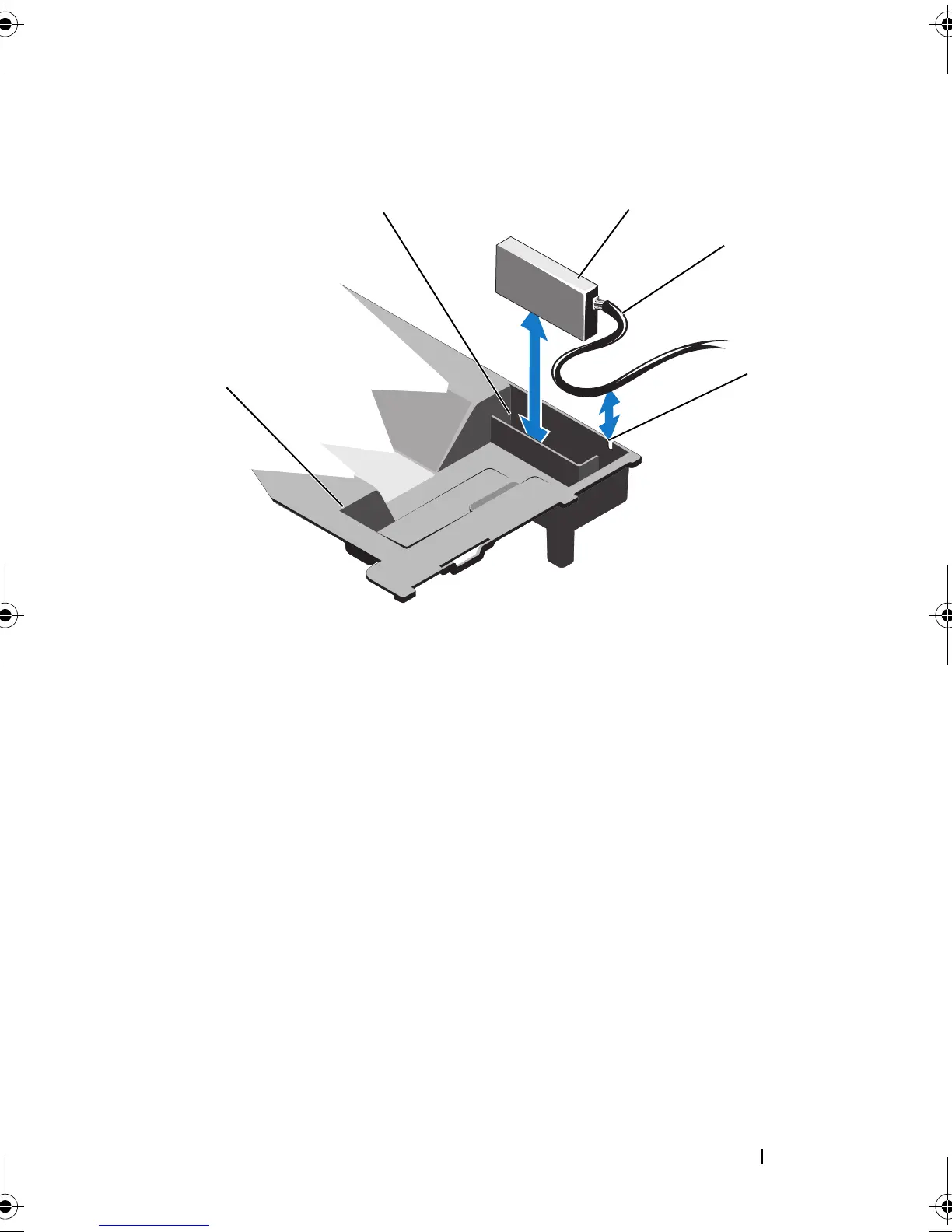

Figure 3-20. Removing and Installing the RAID Battery
Installing the RAID Battery
1
Insert the RAID battery into the battery carrier in the cooling shroud.
See Figure 3-20.
2
Route the RAID battery cable along the chassis wall and through the slot
in the battery carrier.
3
Tuck any cable slack into the area in front of the battery carrier slot.
4
Connect the battery cable to the connector on the integrated storage
controller card.
5
Replace the cooling fan assembly. See "Installing the Cooling Fan
Assembly" on page 104.
6
Close the system. See "Closing the System" on page 77.
7
Reconnect the system to its electrical outlet and turn the system on,
including any attached peripherals.
1 RAID battery carrier 2 RAID battery
3 RAID battery cable 4 RAID battery carrier slot
5 cooling shroud
