128 Installing System Components

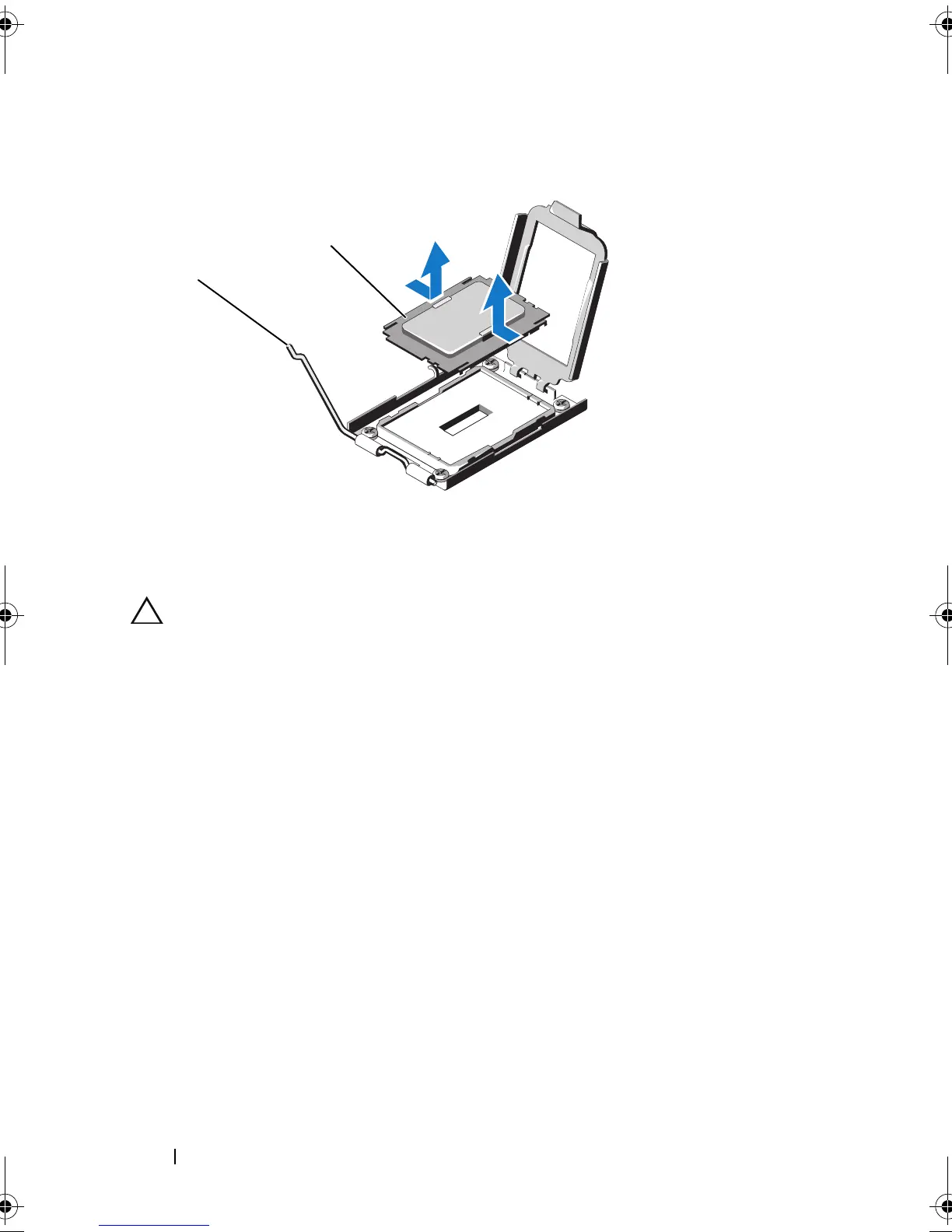

Figure 3-25. Removing and Installing a Processor Blank
CAUTION: Be careful not to bend any of the pins on the ZIF socket when removing
the processor. Bending the pins can permanently damage the system board.
11
Carefully, lift the processor out of the socket and leave the release lever up
so that the socket is ready for the new processor.
After removing the processor, place it in an antistatic container for reuse,
return, or temporary storage. Do not touch the bottom of the processor.
Touch only the side edges of the processor.
If you are permanently removing the processor, you must install a processor
blank in the processor socket to protect the pins of the processor socket.
See Figure 3-25. Installing a processor blank is similar to installing a
processor. See "Installing a Processor" on page 129.
1 release lever 2 processor blank
