Dell PowerEdge R650XS RD8NP User Manual

Next steps
1. If applicable, Install the M,2 BOSS riser.
2. Follow the procedure listed in After working inside your system.
Removing the M.2 SSD module
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Removing the M.2 BOSS riser.
4. Remove the M.2 BOSS card from the M.2 BOSS riser.
Steps
1. Using the Phillips #1 screwdriver, remove the screws securing the M.2 SSD module to the BOSS card.
2. Pull the M.2 SSD module to disconnect from the connector on the M.2 BOSS card.

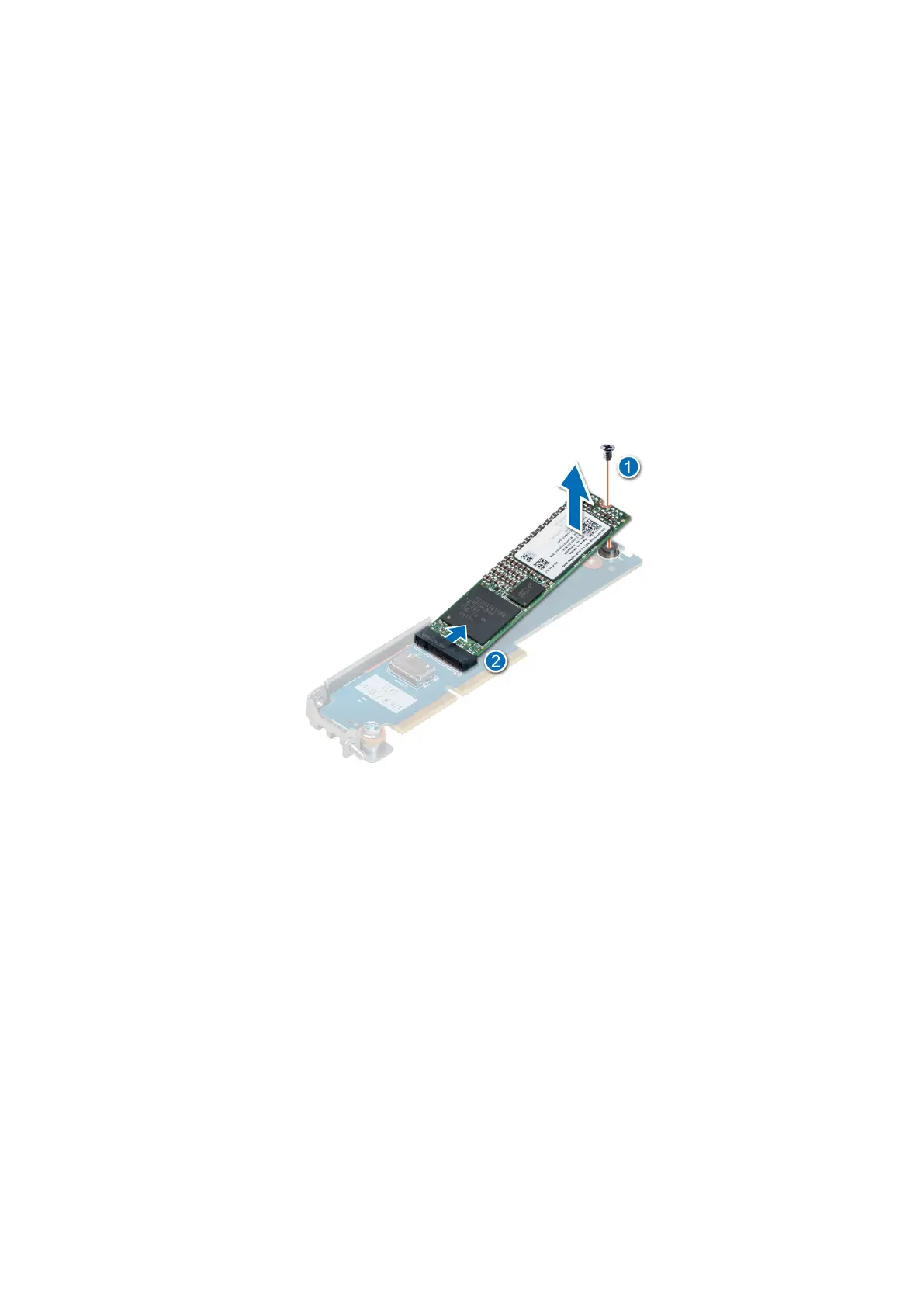

Figure 105. Removing the M.2 SSD module
Next steps
1. If applicable, Install the M.2 BOSS card into the M.2 BOSS riser.
2. If applicable, Install the M,2 BOSS riser.
Installing the M.2 SSD module
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Removing the M.2 BOSS riser.
4. Remove the M.2 BOSS card from the M.2 BOSS riser.
Steps
1. Align the M.2 SSD module at angle with the connector on the M.2 BOSS card.
2. Insert the M.2 SSD module until it is firmly seated in M.2 BOSS card connector.
Installing and removing system components
103

Dell PowerEdge R650XS RD8NP Specifications

General

Memory Slots	16 DIMM slots
Form Factor	1U rack server
Processor	Up to two 3rd Generation Intel Xeon Scalable processors, with up to 32 cores per processor
Memory	Up to 1TB DDR4, 3200 MT/s
Storage	Up to 8 x 2.5" or 3.5" drives (SAS/SATA/NVMe)
RAID Support	PERC H755
Power Supply	800W
Network	1 x 1GbE OCP 3.0 card (optional)
PCIe Slots	Up to 3 PCIe Gen4 slots
