Power interposer board
This is a service technician replaceable part only.
Removing the power interposer board
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the air shroud.
4. Remove the PSU or PSU blank.
5. Disconnect the cables that are connected to power interposer board (PIB).
NOTE: Systems shipped since Nov'22 may have a different power distribution board and connectors.
Steps
1. Using a Phillips #2 screwdriver, remove the screws securing the power interposer board to the system.
NOTE: Observe the routing of the cable as you remove it from the system.
2. Lift the PIB away from the system.

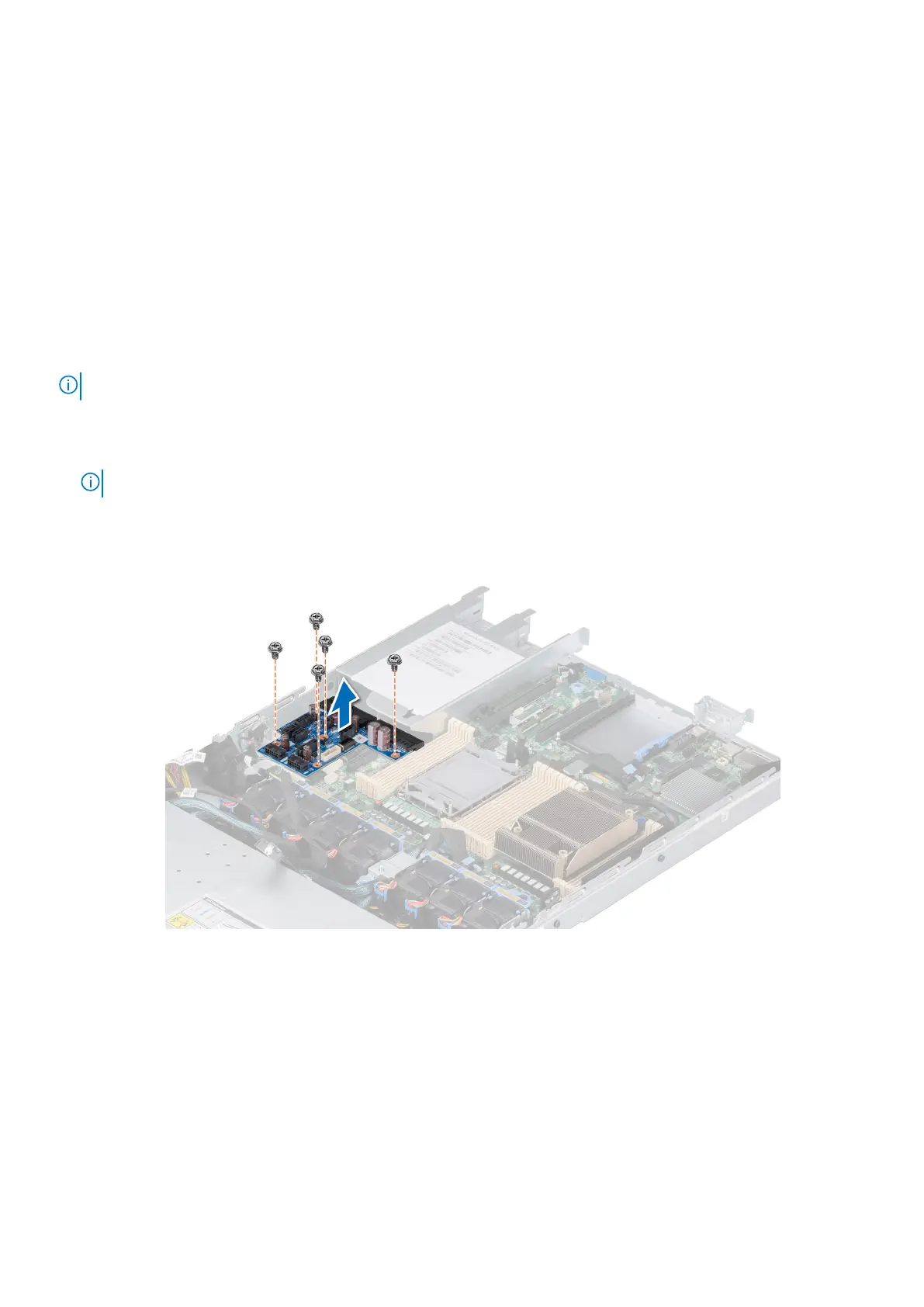

Figure 123. Removing the power interposer board
Next steps
Replace the power interposer board.
Installing the power interposer board
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Installing and removing system components
119
