Locating the Express Service Code and Service Tag
The unique Express Service Code and Service Tag are used to identify the system.
The information tag is located on the front includes system information such as the Service Tag, Express Service Code,
Manufacture date, NIC, MAC address, QRL label, and so on. If you have opted for the secure default access to iDRAC, the
Information tag also contains the iDRAC secure default password. If you have opted for iDRAC Quick Sync 2, the Information
tag also contains the OpenManage Mobile (OMM) label, where administrators can configure, monitor, and troubleshoot the
PowerEdge servers.

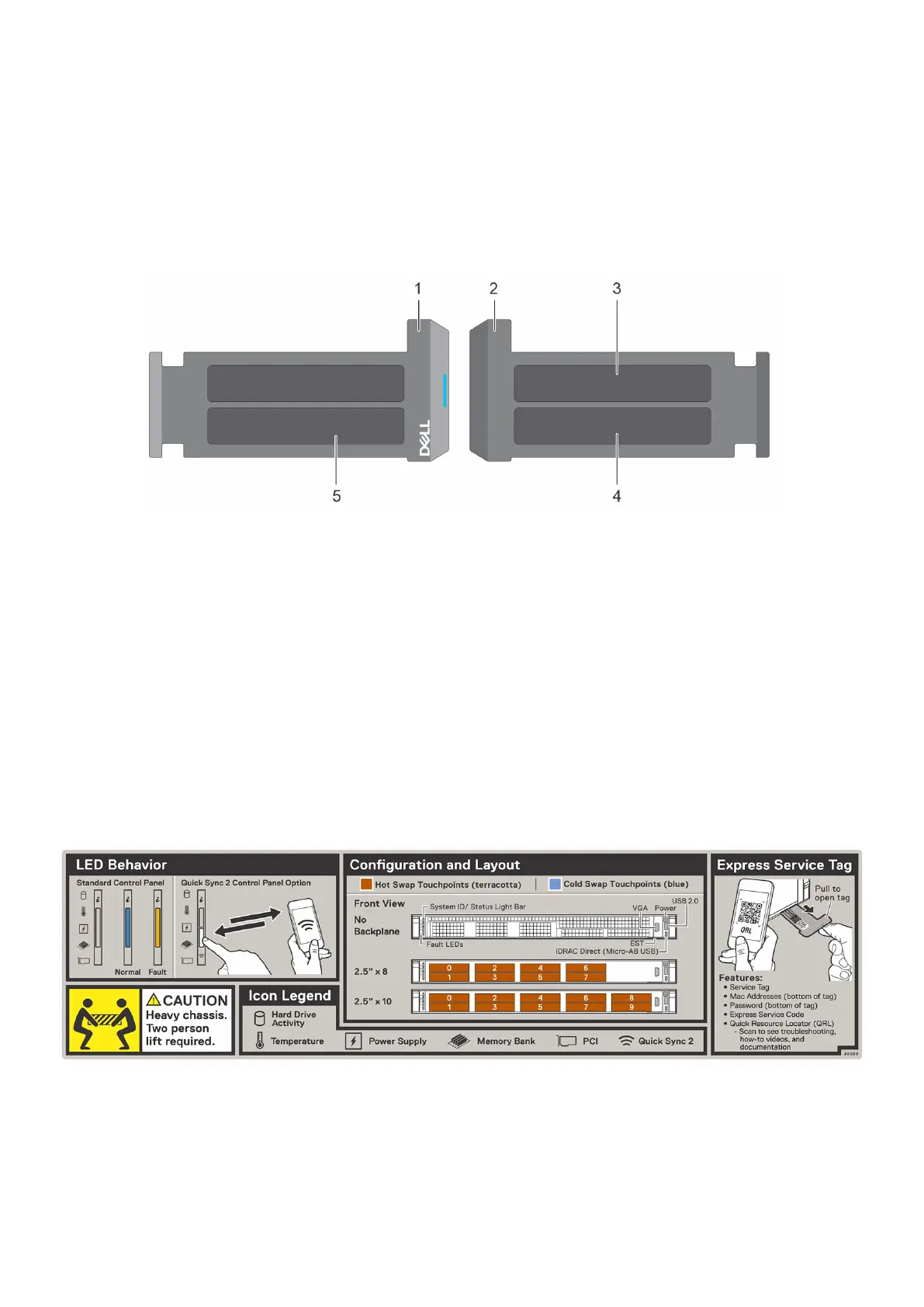

Figure 8. Locating the Express Service Code and Service tag
1. Information tag (front view)
2. Information tag (back view)
3. OpenManage Mobile (OMM) label
4. iDRAC MAC address and iDRAC secure password label
5. Service Tag, Express Service Code, QRL label
The Mini Enterprise Service Tag (MEST) label is located on the rear of the system that includes the Service Tag (ST), Express
Service Code (Exp Svc Code), and Manufacture Date (Mfg. Date). The Exp Svc Code is used by Dell EMC to route support calls
to the appropriate personnel.
Alternatively, the Service Tag information is located on a label on the left wall of the chassis.
System information label
The system information label is located on back of the system cover.
Figure 9. LED behaviour, Configuration and layout, Express Service Tag
Dell EMC PowerEdge R650xs system overview
15
