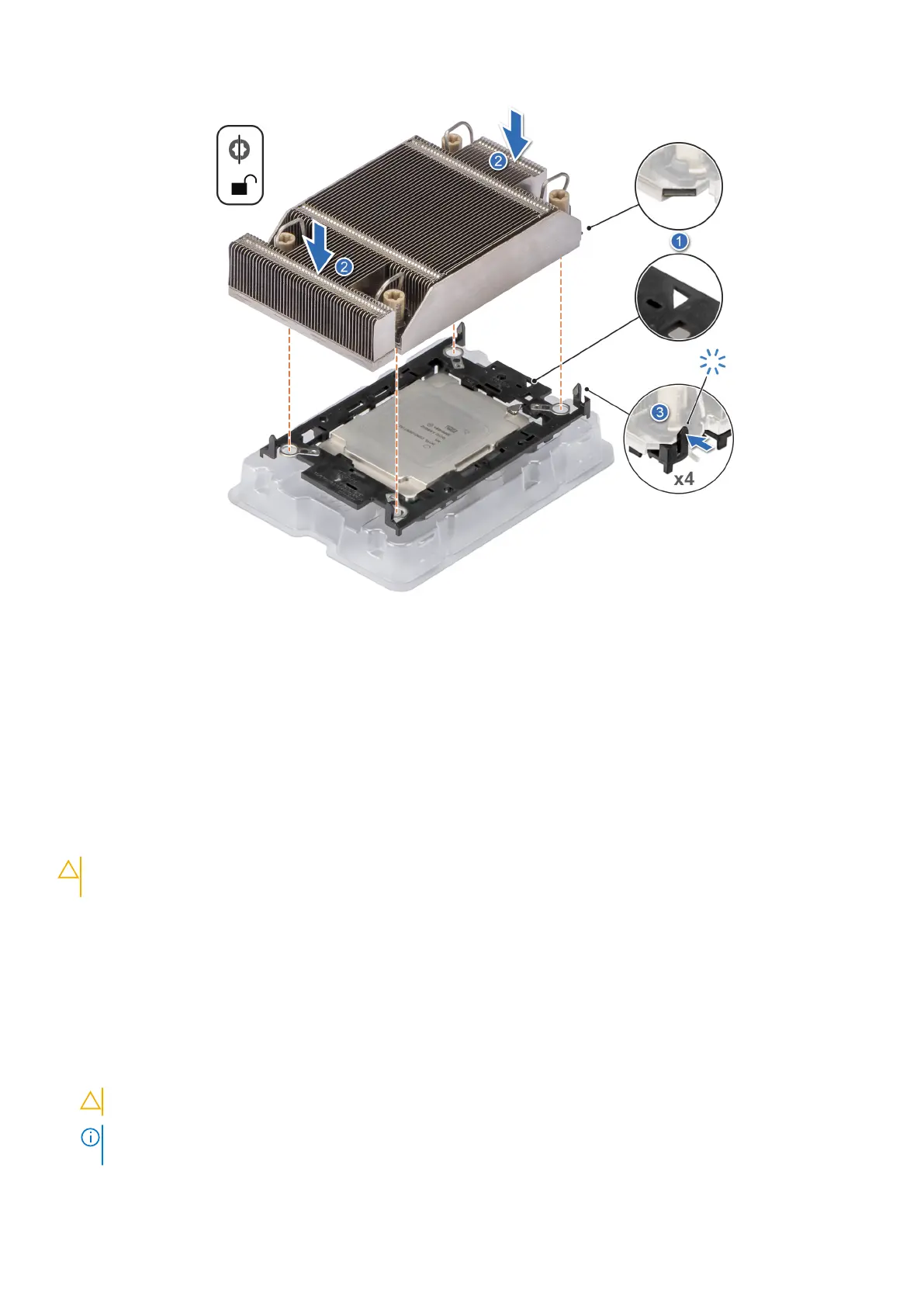

Figure 61. Installing the heat sink onto the processor
Next steps
1. Install the processor and heat sink module.
2. Install the air shroud.
3. Follow the procedure listed in After working inside your system.
Installing the processor and heat sink module
Prerequisites
CAUTION:
Never remove the heat sink from a processor unless you intend to replace the processor. The heat
sink is necessary to maintain proper thermal conditions.
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the air shroud.
4. If installed, remove the processor dust cover.
Steps
1. Set the Anti-Tilt wires to the unlocked position on the heat sink (inward position).
2. Align the pin 1 indicator of the heat sink to the system board, and then place the processor and heat sink on the processor
socket.
CAUTION: To avoid damaging the fins on the heat sink, do not press down on the heat sink fins.
NOTE: Ensure that the processor and heat sink is held parallel to the system board to prevent damaging the
components.
68 Installing and removing system components

Dell PowerEdge R650XS RD8NP Specifications

General

Memory Slots	16 DIMM slots
Form Factor	1U rack server
Processor	Up to two 3rd Generation Intel Xeon Scalable processors, with up to 32 cores per processor
Memory	Up to 1TB DDR4, 3200 MT/s
Storage	Up to 8 x 2.5" or 3.5" drives (SAS/SATA/NVMe)
RAID Support	PERC H755
Power Supply	800W
Network	1 x 1GbE OCP 3.0 card (optional)
PCIe Slots	Up to 3 PCIe Gen4 slots
