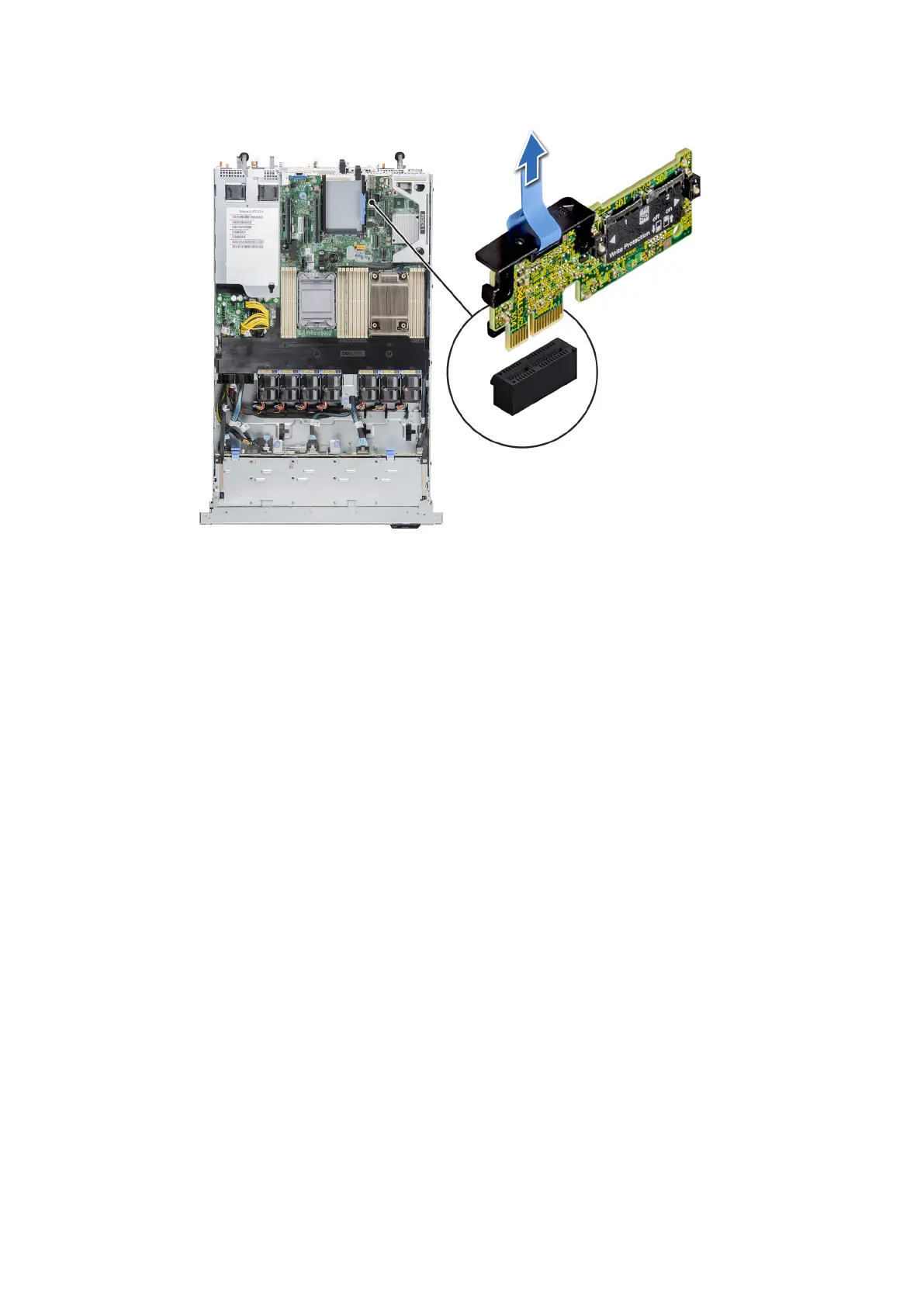

Figure 107. Removing the IDSDM module
Next steps
Replace the IDSDM module.
Installing the IDSDM module
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the air shroud.
Steps
1. Locate the IDSDM connector on the system board.
To locate IDSDM, see the System board jumpers and connectors section.
2. Align IDSDM module with the connector on the system board.
3. Push IDSDM module until it is firmly seated in the connector on the system board.
Installing and removing system components
105

Dell PowerEdge R650XS RD8NP Specifications

General

Memory Slots	16 DIMM slots
Form Factor	1U rack server
Processor	Up to two 3rd Generation Intel Xeon Scalable processors, with up to 32 cores per processor
Memory	Up to 1TB DDR4, 3200 MT/s
Storage	Up to 8 x 2.5" or 3.5" drives (SAS/SATA/NVMe)
RAID Support	PERC H755
Power Supply	800W
Network	1 x 1GbE OCP 3.0 card (optional)
PCIe Slots	Up to 3 PCIe Gen4 slots
