Dell PowerEdge R650XS RD8NP User Manual

Air shroud
Removing the air shroud
Prerequisites
CAUTION: Never operate your system with the air shroud removed. The system may get overheated quickly,
resulting in shutdown of the system and loss of data.
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
Hold the air shroud at both ends and lift the air shroud out of the system.

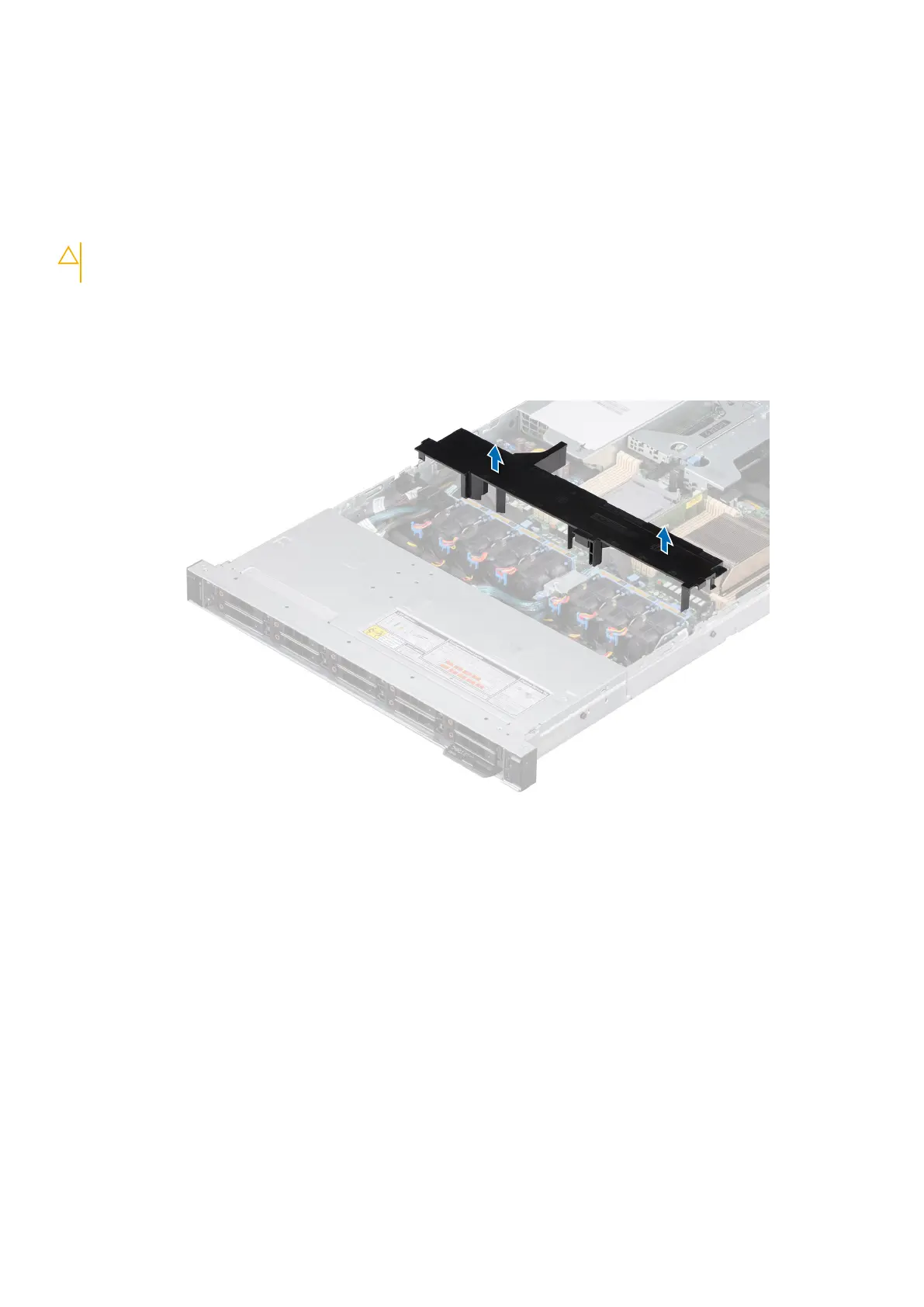

Figure 18. Removing the air shroud
Next steps
Replace the air shroud.
Installing the air shroud
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
1. Align the slot on the air shroud with the standoff on the chassis.
2. Lower the air shroud into the system until it is firmly seated.
34
Installing and removing system components

Dell PowerEdge R650XS RD8NP Specifications

General

Memory Slots	16 DIMM slots
Form Factor	1U rack server
Processor	Up to two 3rd Generation Intel Xeon Scalable processors, with up to 32 cores per processor
Memory	Up to 1TB DDR4, 3200 MT/s
Storage	Up to 8 x 2.5" or 3.5" drives (SAS/SATA/NVMe)
RAID Support	PERC H755
Power Supply	800W
Network	1 x 1GbE OCP 3.0 card (optional)
PCIe Slots	Up to 3 PCIe Gen4 slots
