Dell PowerEdge R650XS RD8NP User Manual

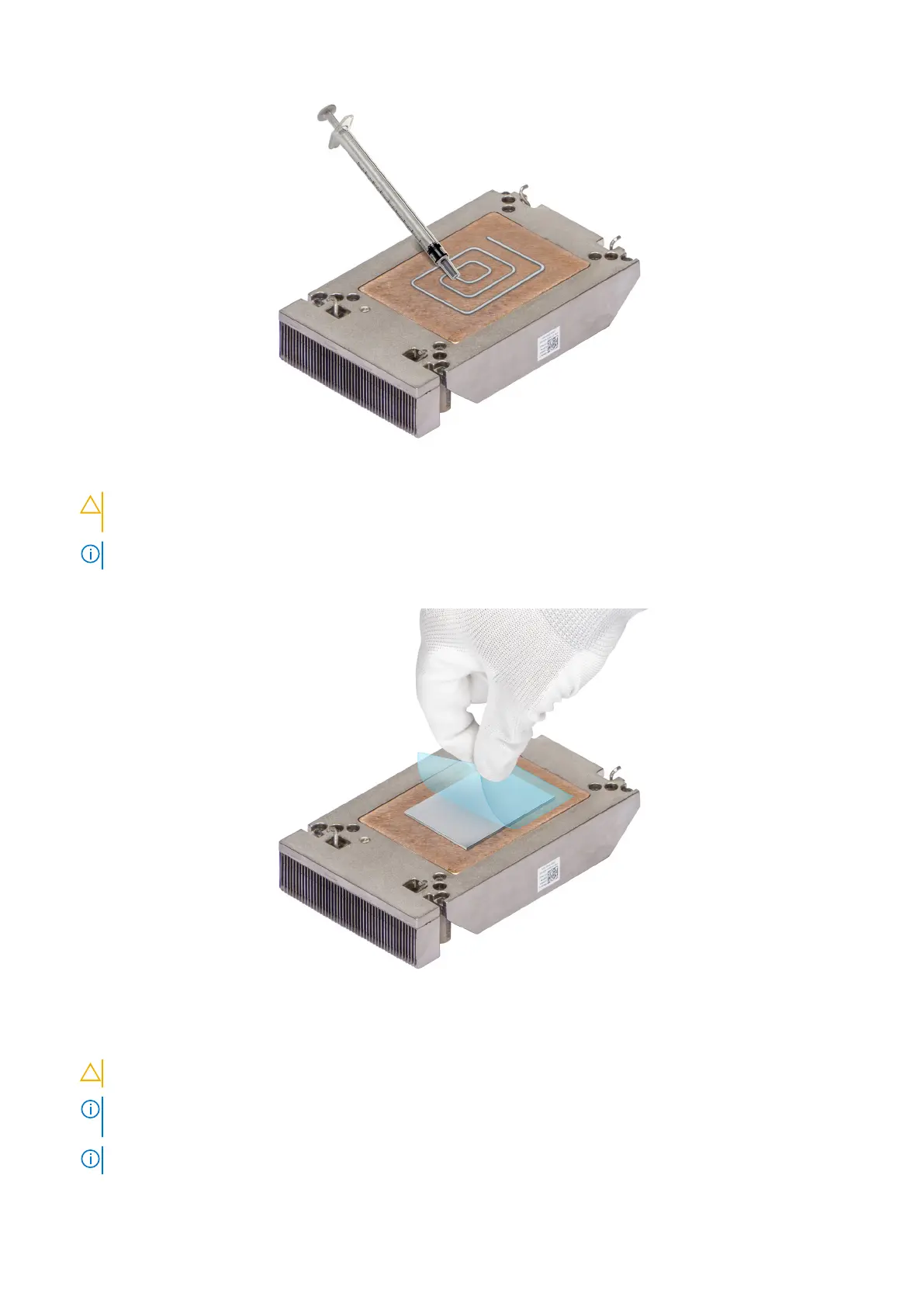

Figure 59. Applying thermal grease
CAUTION: Applying too much thermal grease can result in excess grease coming in contact with and
contaminating the processor socket.
NOTE: The thermal grease syringe is intended for single use only. Dispose of the syringe after you use it.
6. For new heat sink. remove the Thermal Interface Material (TIM) protective film from the base of heat sink.
Figure 60. Remove the Thermal Interface Material (TIM) protective film
7. Place the heat sink on the processor and press the heat sink until the carrier locks onto the heat sink at all the four corners.
CAUTION: To avoid damaging the fins on the heat sink, do not press down on the heat sink fins.
NOTE: Ensure that the pin 1 indicator on the heat sink is aligned with the pin 1 indicator on the carrier before placing the
heat sink onto the processor carrier.
NOTE: Ensure latching features on processor carrier and heat sink are aligned during assembly.
Installing and removing system components 67

Dell PowerEdge R650XS RD8NP Specifications

General

Memory Slots	16 DIMM slots
Form Factor	1U rack server
Processor	Up to two 3rd Generation Intel Xeon Scalable processors, with up to 32 cores per processor
Memory	Up to 1TB DDR4, 3200 MT/s
Storage	Up to 8 x 2.5" or 3.5" drives (SAS/SATA/NVMe)
RAID Support	PERC H755
Power Supply	800W
Network	1 x 1GbE OCP 3.0 card (optional)
PCIe Slots	Up to 3 PCIe Gen4 slots
