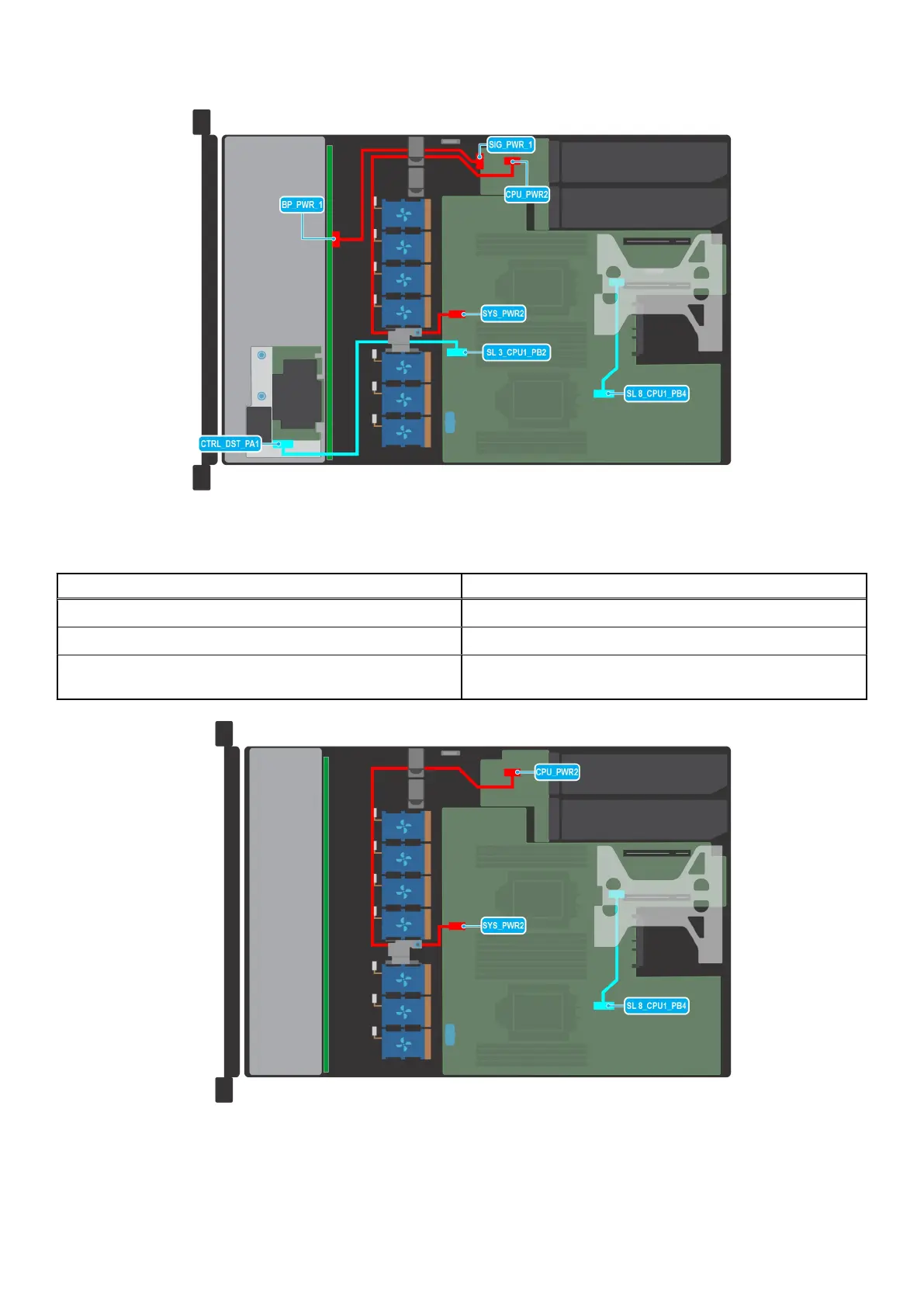

Figure 47. Cable routing - 8 x 2.5-inch drive SAS/SATA backplane with SNAPI riser
Table 25. Connector descriptions for 8 x 2.5-inch drive SAS/SATA backplane with SNAPI riser
From To
BP_PWR_1 (backplane power connector) SIG_PWR_1 (system board power connector)
SYS_PWR2 (system board power connector) CPU_PWR2 (PSU power connector)
CTRL_DST_PA1 (fPERC connector on the backplane) SL3_CPU1_PB2 (signal connector on the system board, cable
marking MB SL3)
Figure 48. Cable routing - No drives with SNAPI riser
Installing and removing system components
57
