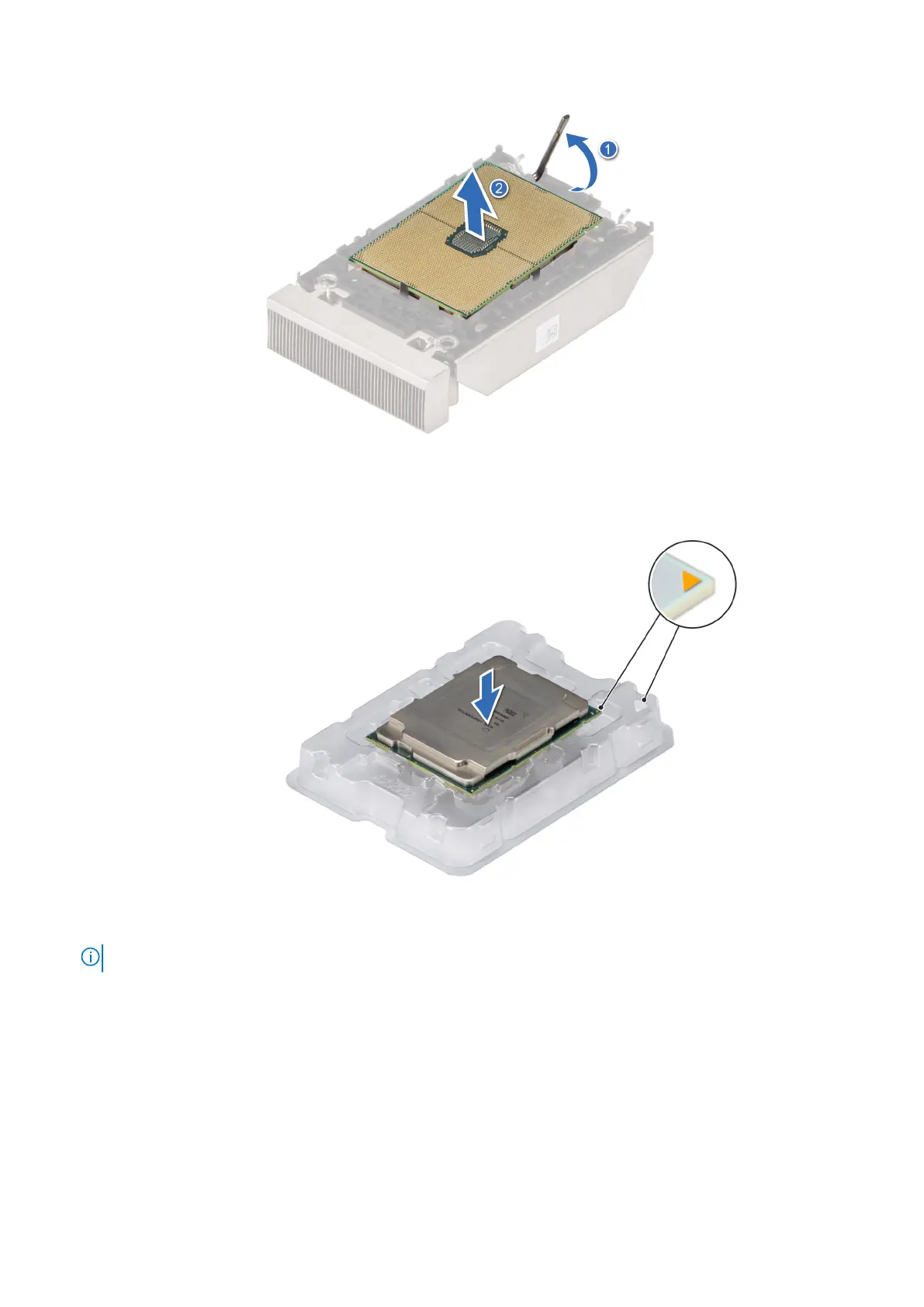

Figure 54. Lift the TIM break lever
Figure 55. Aligning pin 1 marks of processor with tray
NOTE: Ensure that to return the TIM break lever back to its original position.
4. Using your thumb and index finger, first hold the carrier release tab at the pin 1 connector, pull out the tip of the carrier
release tab, and then lift the carrier partially from the heat sink.
5. Repeat the procedure at the remaining three corners of the carrier.
6. After all the corners are released from the heat sink, lift the carrier from the pin 1 corner of the heat sink.
64
Installing and removing system components

Dell PowerEdge R650XS RD8NP Specifications

General

Memory Slots	16 DIMM slots
Form Factor	1U rack server
Processor	Up to two 3rd Generation Intel Xeon Scalable processors, with up to 32 cores per processor
Memory	Up to 1TB DDR4, 3200 MT/s
Storage	Up to 8 x 2.5" or 3.5" drives (SAS/SATA/NVMe)
RAID Support	PERC H755
Power Supply	800W
Network	1 x 1GbE OCP 3.0 card (optional)
PCIe Slots	Up to 3 PCIe Gen4 slots
