Figure 69. Removing the Riser 1

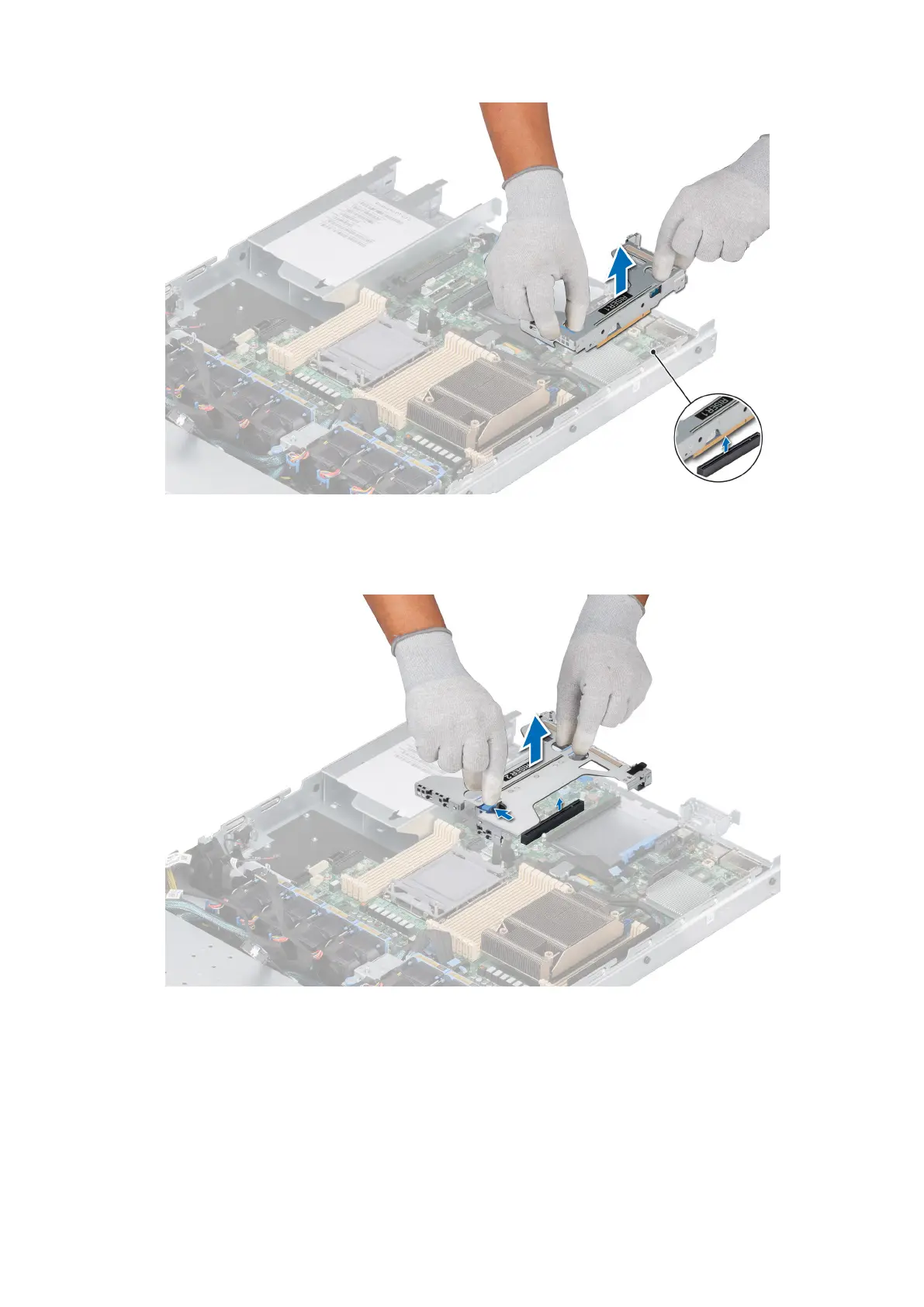

2. For Riser 2a, release the blue latch and hold the blue touch points, and lift the expansion card riser from the riser connector
on the system board.
Figure 70. Removing the Riser 2a
3. For Riser 2b, first disconnect the cable from system board, then release the blue latch, and then holding the blue touch
points, lift the expansion card riser from the riser connector on the system board.
Installing and removing system components
81
