Steps
1. Remove the screws, lift the PCIe blank, and then open the latch on the expansion card riser. (Riser 1, Riser 2c).

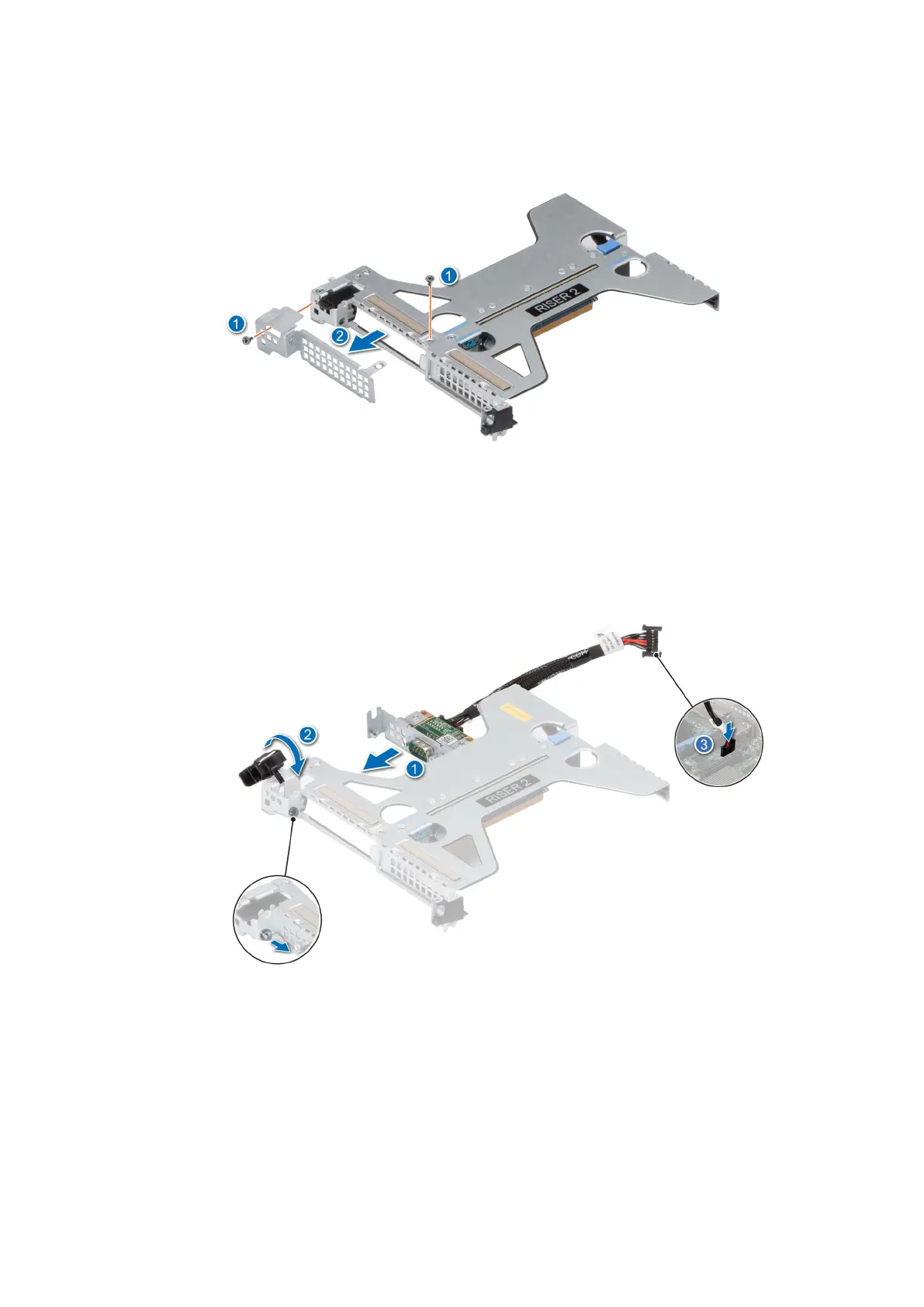

Figure 97. Removing the PCIe blank
2. Slide and lock the serial COM port into the expansion card riser.
3. Connect the serial COM port cable to the serial port.
Figure 98. Installing the Serial COM port
Next steps
1. Install the expansion card riser.
2. Install the air shroud.
3. Follow the procedure listed in After working inside your system.
Installing and removing system components
97
