Dell PowerEdge R7515 MY077 - Cable routing

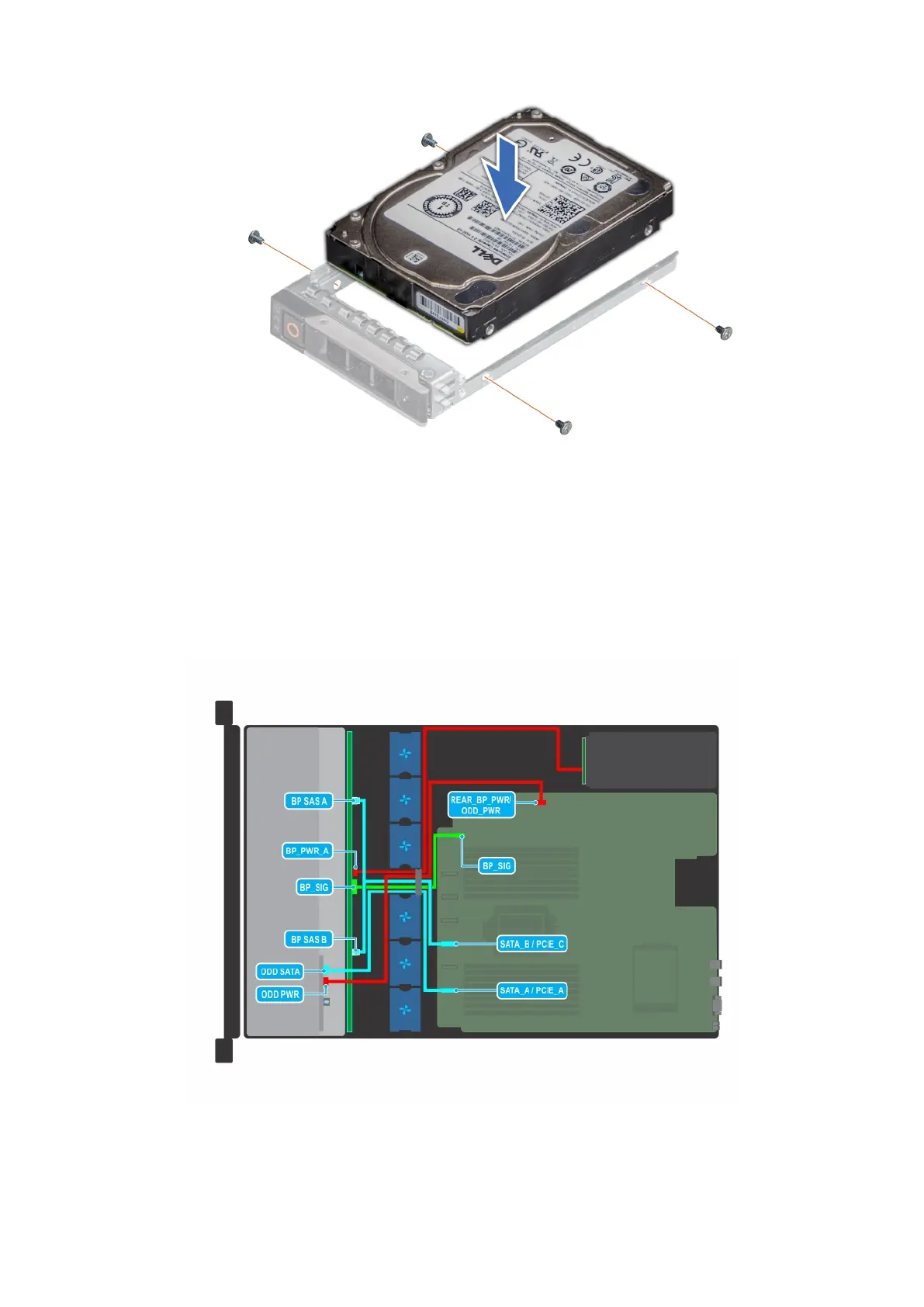

Figure 38. Installing a drive into the drive carrier
Next steps
1. Install the drive carrier.
2. If removed, install the front bezel.
Cable routing
Figure 39. Cable routing - 8 x 3.5 inch drive backplane with ODD
46
Installing and removing system components
