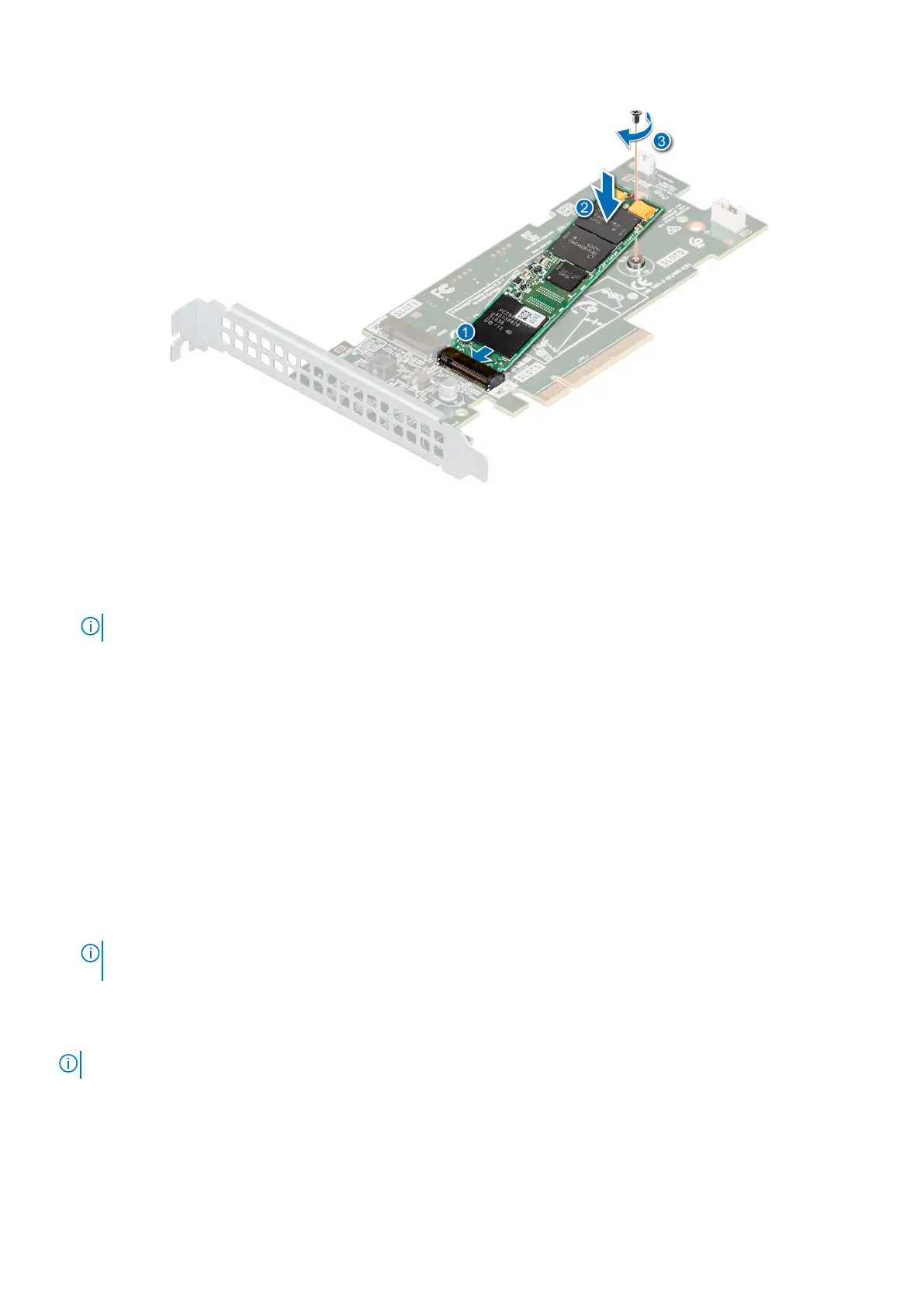

Figure 95. Installing the M.2 SSD module
Next steps
1. Install the BOSS card into the riser.
NOTE: The procedure to install the BOSS card is similar to removing an expansion card.
2. Install expansion card riser
3. Install the air shroud.
4. Follow the procedure listed in After working inside your system.
Optional IDSDM module
Removing the IDSDM card
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the air shroud.
4. If you are replacing the IDSDM card, remove the MicroSD cards.
NOTE:
Temporarily label each SD card with its corresponding slot number before removal. Reinstall the SD cards into
the corresponding slots.
Steps
Holding the pull tab, lift the IDSDM card out of the system.
NOTE: There are two dip switches on the IDSDM card for write-protection.
Installing and removing system components 93
