Dell Precision 3540 - Installing Display Hinge

Steps

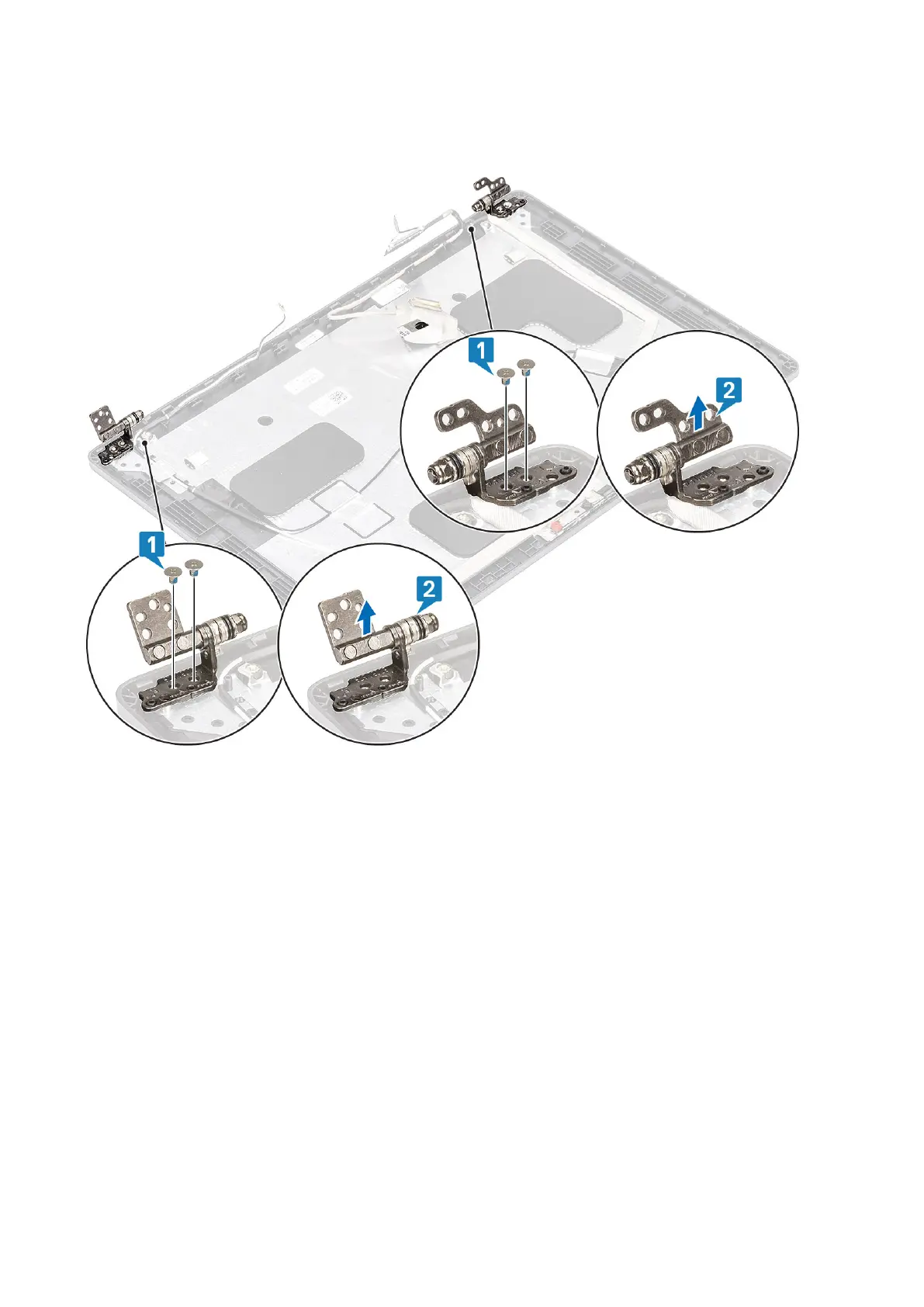

1. Remove the four (M2.5x3.5) screws that secure the display hinge to the display assembly [1].
2. Remove the display hinges from the display back cover [2].
Installing display hinge
Steps
1. Align and place the display hinge on the display assembly.
2. Replace the four (M2.5x3.5) screws to secure the display hinge to the display assembly.
Disassembly and reassembly
101
