Dell Precision 3540 - Installing the LCD Assembly

Installing the LCD assembly
Steps
1. Place the chassis on a plane surface.

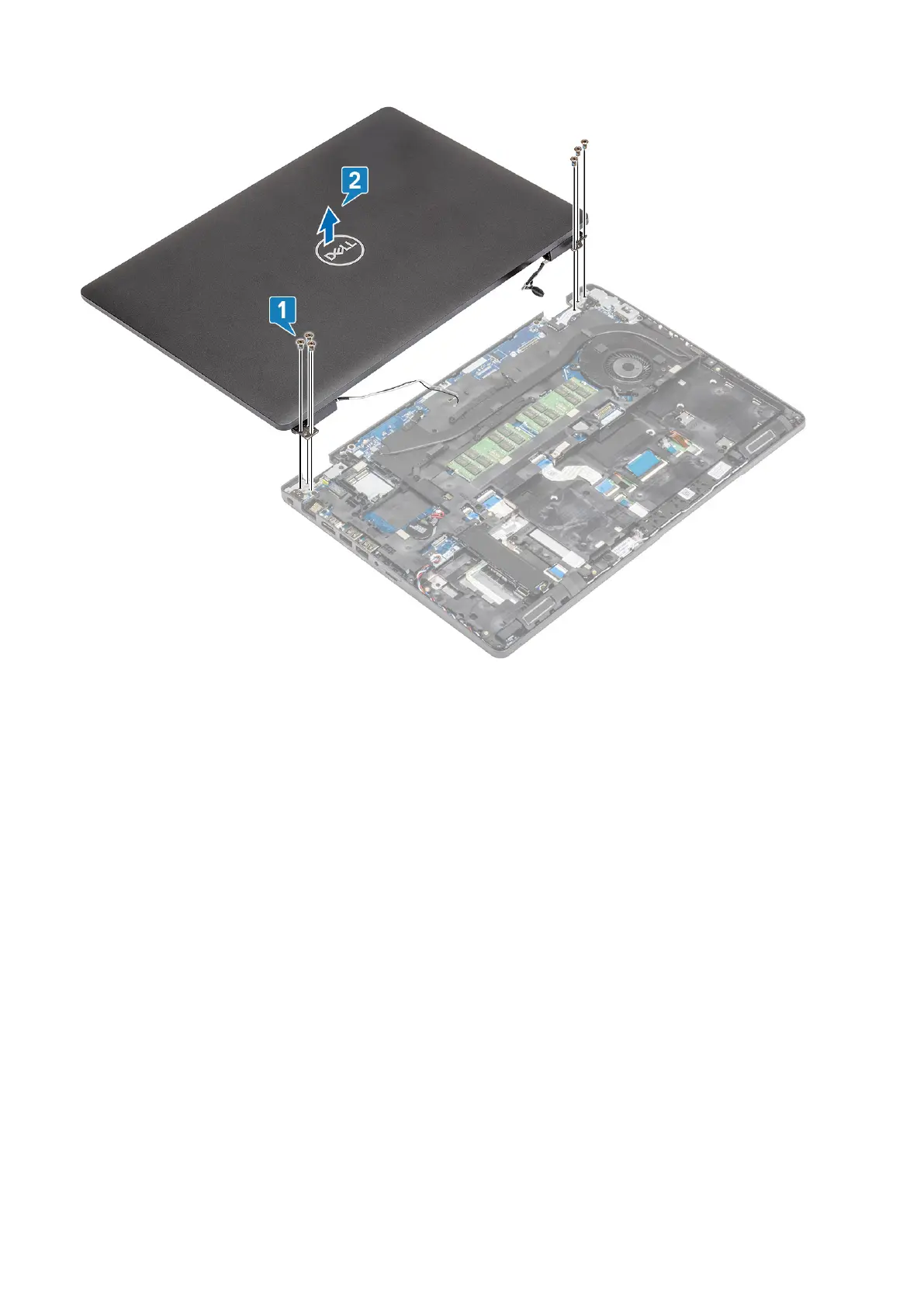

2. Align the display assembly with the screw holders on the system [1].
3. Replace the six (M2.5x5.0) display hinge screws that secure the display assembly to the system [2].
Disassembly and reassembly
81
