Dell Precision 3540 - Installing the Heatsink

Installing the Heatsink
Steps

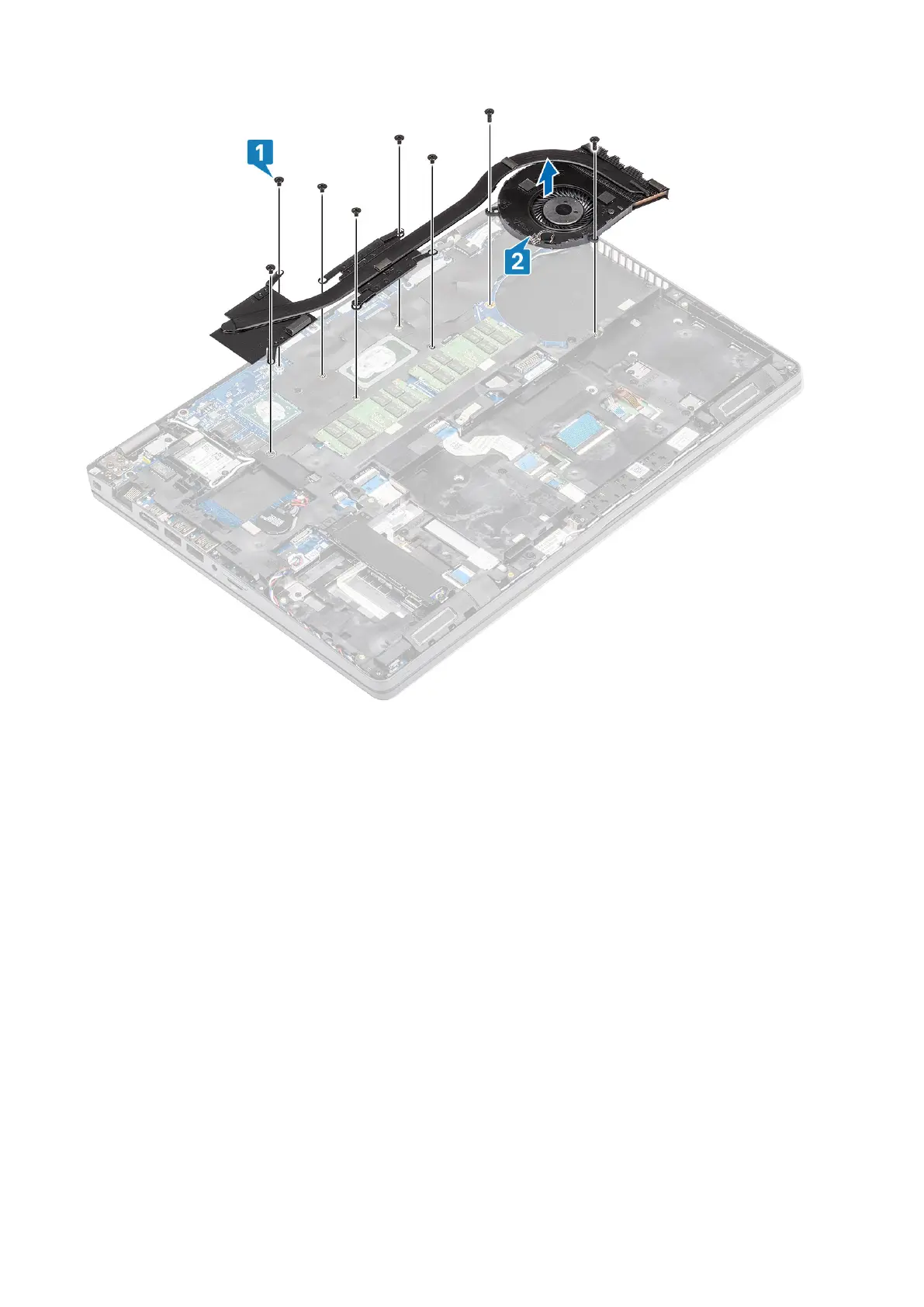

1. Align and place the Heatsink over the screw holes on the computer [1].
2. Replace the seven (M2x3) and (M2x5) screws as per the callouts on the Heatsink [2].
50
Disassembly and reassembly
