Dell Precision 3540 - Palmrest Assembly; Replacing the Palmrest and Keyboard Assembly

10. Remove the camera.
11. Remove the display cable.
About this task

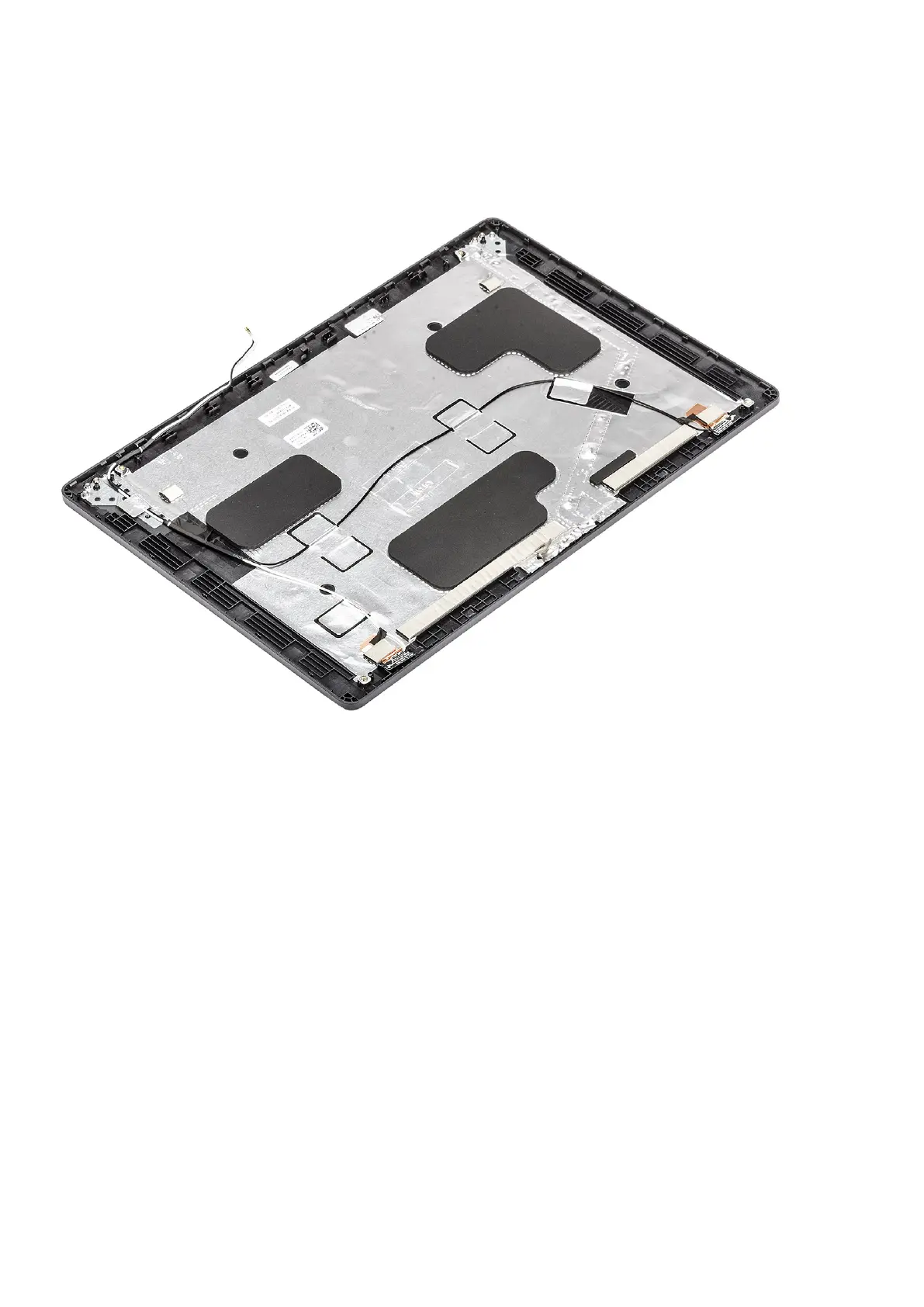

After performing the preceding steps, you are left with the display back cover.
Next steps
1. Install the display cable.
2. Install the camera.
3. Install the display panel.
4. Install the display hinges.
5. Install the hinge caps.
6. Install the display bezel.
7. Install the display assembly.
8. Install the battery.
9. Install the base cover.
10. Install the microSD card.
11. Follow the procedure in after working inside your computer.
Palmrest assembly
Replacing the palmrest and keyboard assembly
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the microSD card.
112
Disassembly and reassembly
