Dell Precision 3540 - Installing the Camera

8. Remove the display hinges.
9. Remove the display panel.
Steps

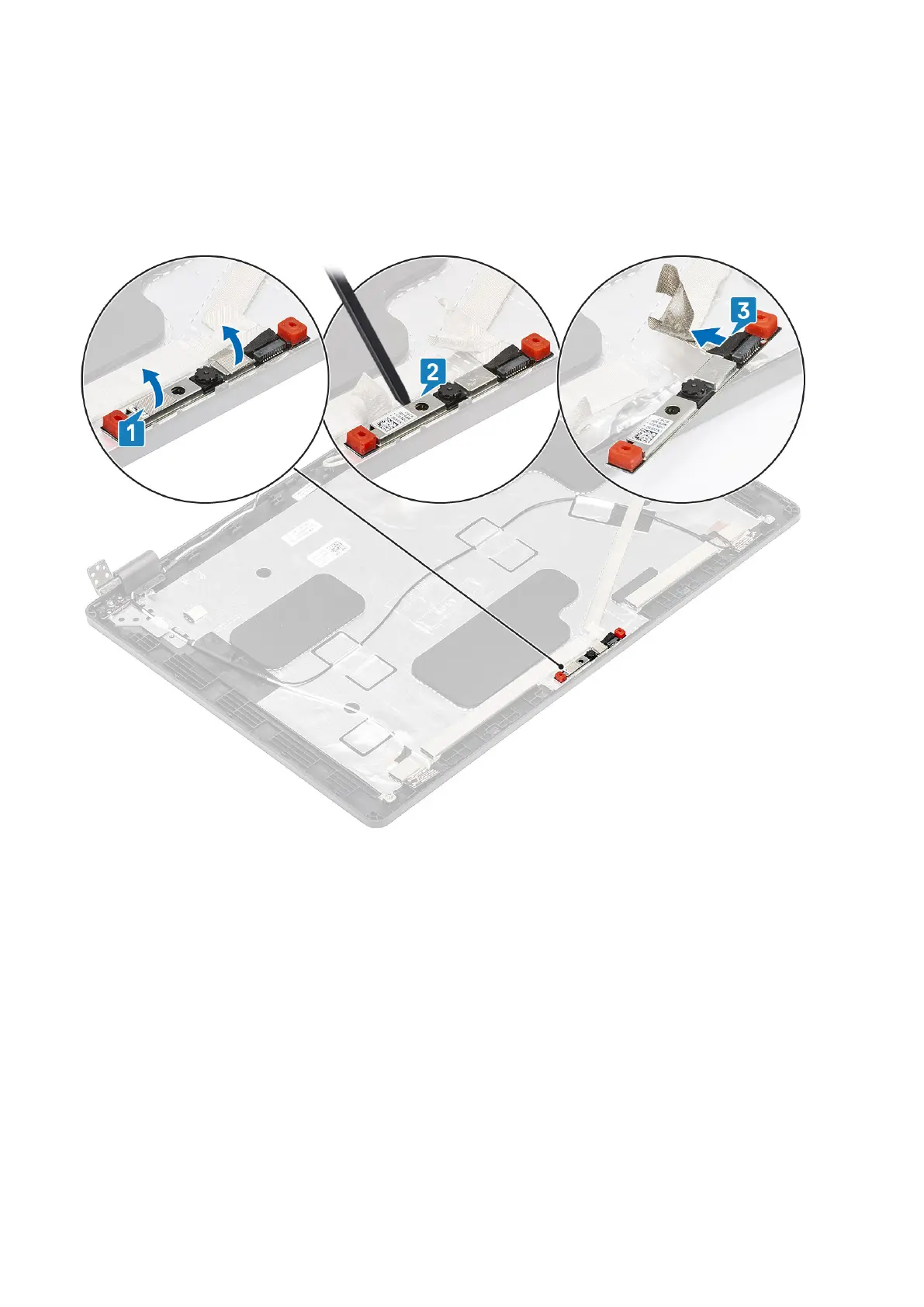

1. Peel the two conductive tape that secures the camera in place [1].
2. Using a plastic scribe carefully pry and lift the camera module from the display back cover [2].
3. Disconnect the camera cable from the connector on the camera module [3].
Installing the camera
Steps
1. Connect the camera cable to the connector on the camera module [1].
2. Insert the camera into the slot on the display back cover [2].
3. Affix the two conductive tape above the camera [3].
108
Disassembly and reassembly
