Dell Precision M4800 - Installing the I;O Board

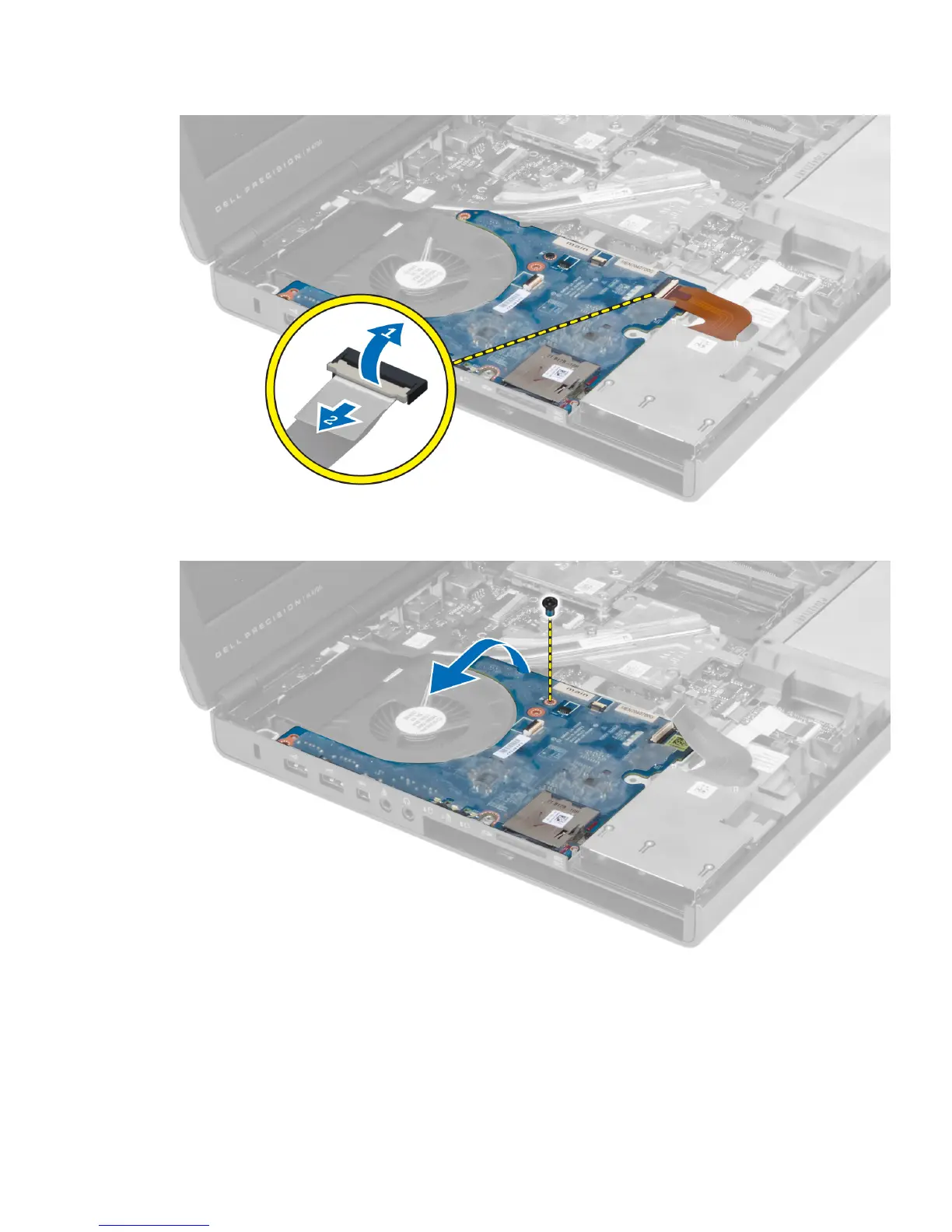

4. Remove the screw that secures the I/O board to the computer. Lift the right edge of the I/O board upwards to
disengage the connector and remove it from computer.
Installing the I/O Board
1. Connect the I/O board connector and slide the I/O board into its slot in the computer.
2. Tighten the screw to secure the I/O board to the computer.
39
