Dell Precision M4800 - Removing the Power-Connector Port

m) optical drive
n) keyboard
o) keyboard trim
p) base cover
q) battery
r) ExpressCard
s) SD card
7. Follow the procedures in After Working Inside Your Computer .
Removing the Power-Connector Port
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the:
a) SD card
b) ExpressCard
c) battery
d) base cover
e) keyboard trim
f) keyboard
g) optical drive
h) hard drive
i) primary memory
j) secondary memory
k) processor fan
l) video-card fan
m) palm rest
n) processor heatsink
o) processor
p) video-card heatsink
q) video card
r) I/O board
s) display assembly
t) system board

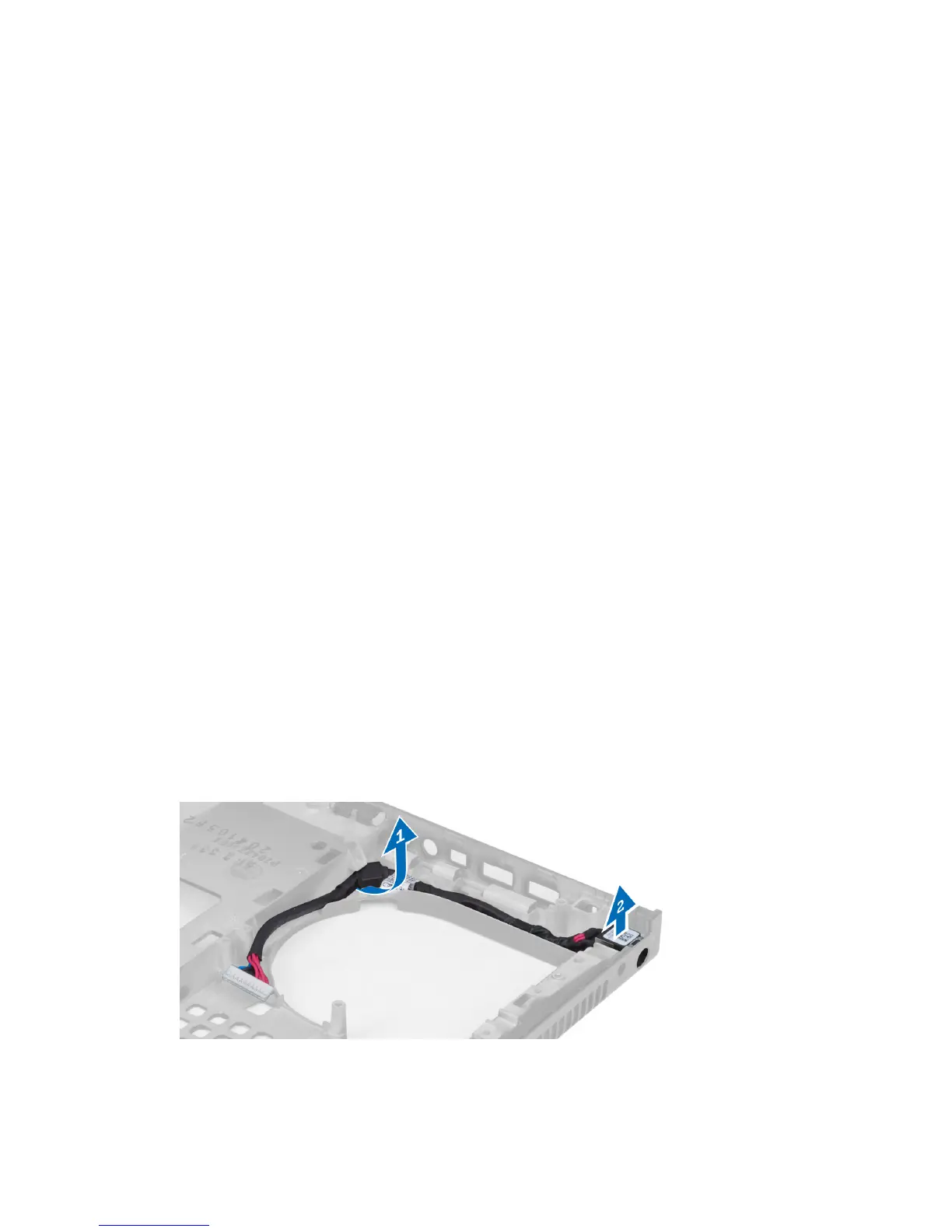

3. Un-route and lift up the power-connector cable from the chassis to remove the power-connector port.
49
