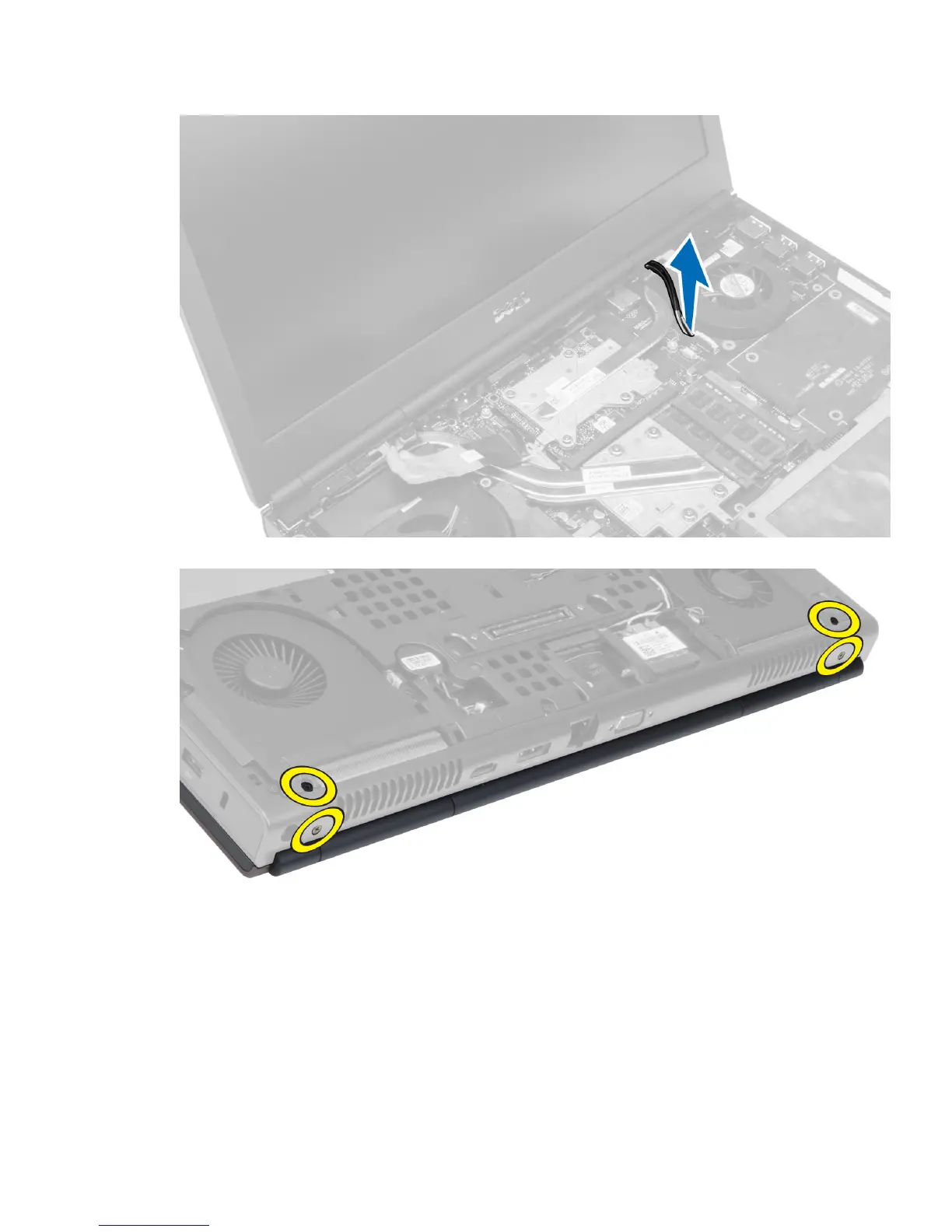

5. Flip the computer and remove the screws from the bottom and back of the computer.
6. Remove the screw that secures the low-voltage differential signalling (LVDS) cable bracket. Remove the LVDS
cable bracket and disconnect the LVDS and camera cable from the system board.
