Dell Precision M4800 - Page 47

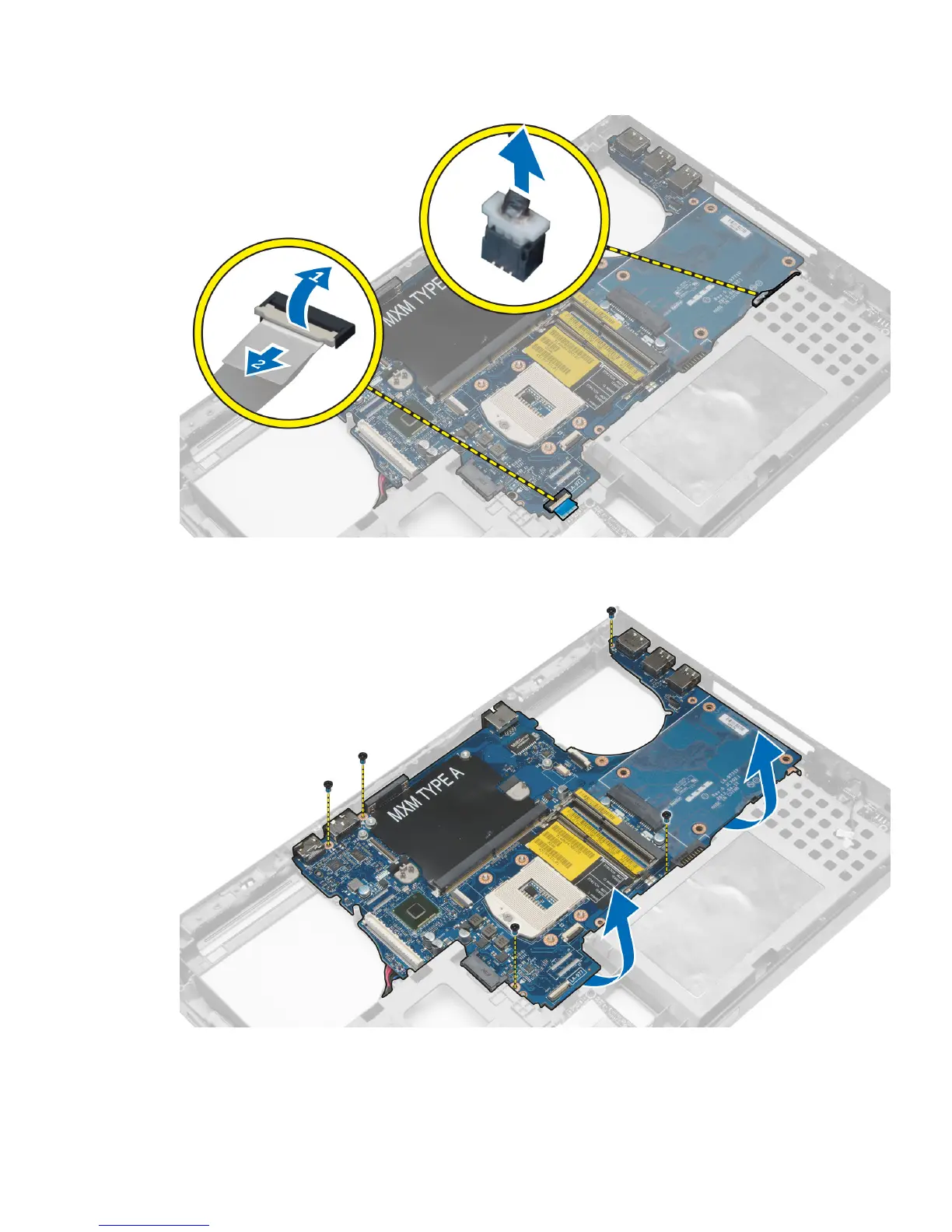

5. Remove all mini-cards (if available).
6. Remove the screws that secure the system board in place and lift the top edge of the system board to a 20° angle.
7. Disconnect the power connector cable and remove the system board.
47
