Dell Precision M6800 - Removing the Video Card; Installing the Video Card

i) battery
6. Follow the procedures in After Working Inside Your Computer .
Removing the Video Card
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the:
a) battery
b) base cover
c) keyboard trim
d) keyboard
e) optical drive
f) hard drive
g) palm rest
h) video fan
i) video heat sink

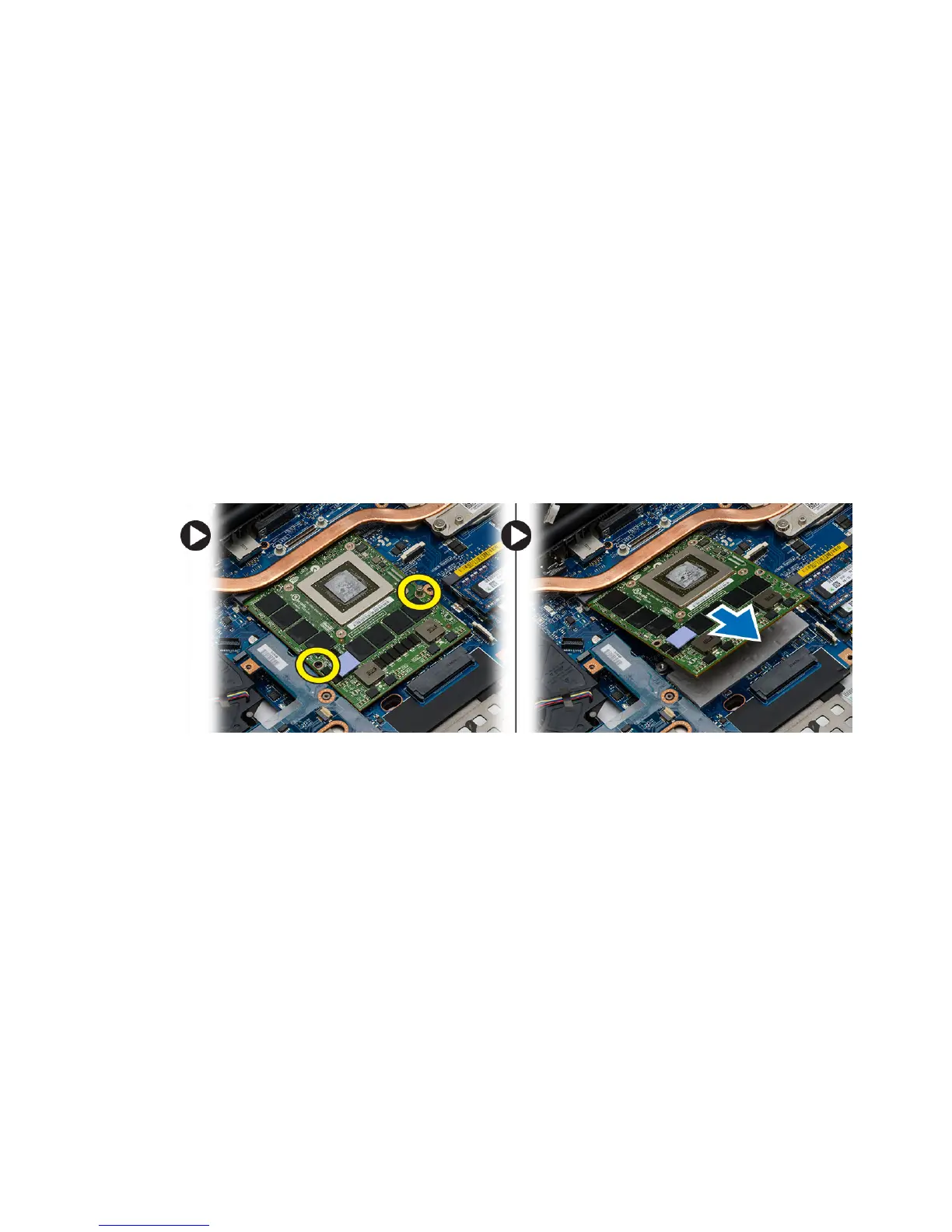

3. Perform the following steps as shown in the illustration:
a) Remove the screws that secure the video card to the computer.
b) Remove the video card from the computer.
Installing the Video Card
1. Slide the video card into its original position in the computer.
2. Tighten the screws to secure the video card to the computer.
3. Install the:
a) video heat sink
b) video fan
c) palm rest
d) hard drive
e) optical drive
f) keyboard
g) keyboard trim
h) bottom door
i) battery
4. Follow the procedures in After Working Inside Your Computer .
