Dell Precision M6800 - Installing the System Board

Installing the System Board

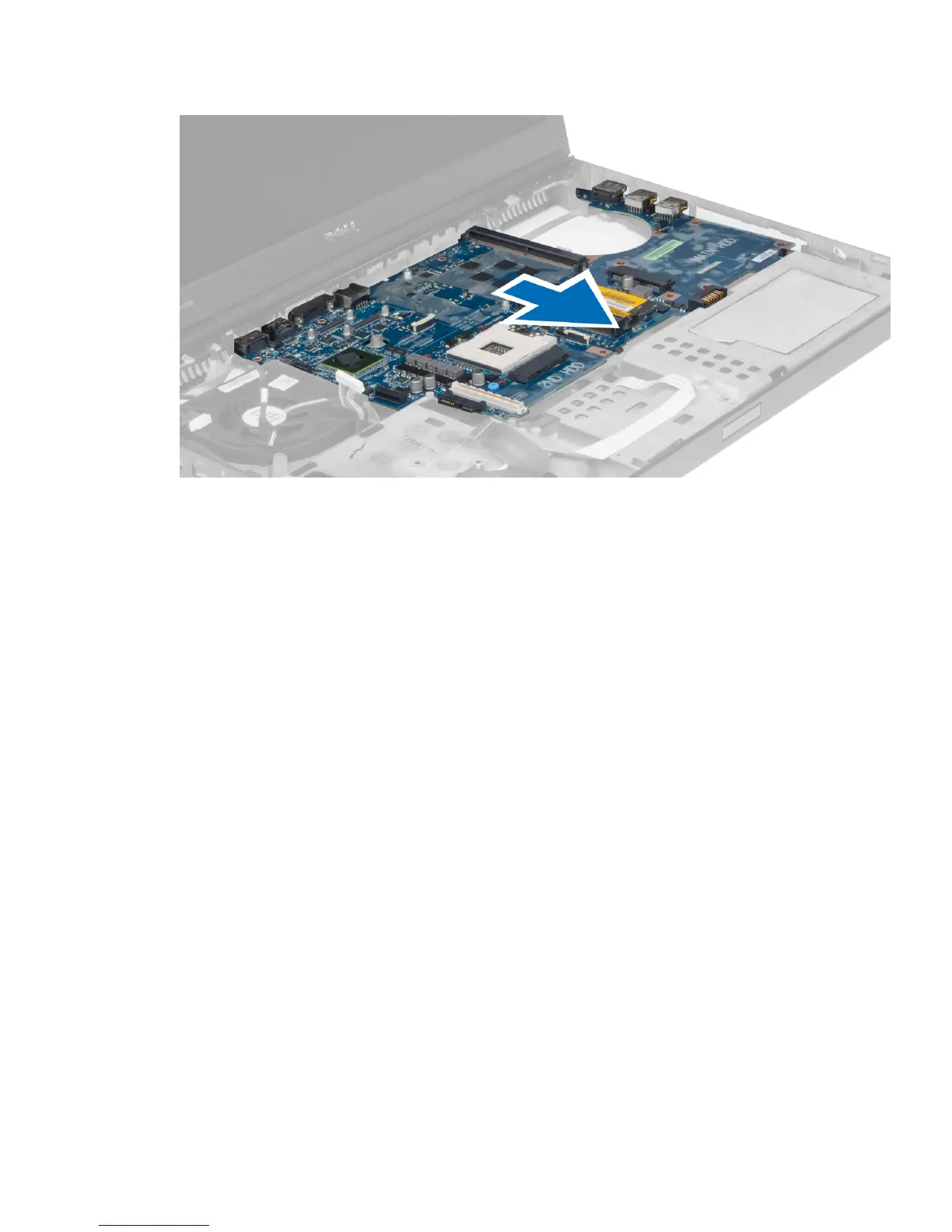

1. Align the system board into its original position on the computer.
2. Tighten the screws to secure the system board to the computer.
3. Connect the following cables:
a) power connector
b) LVDS
c) coin-cell battery
d) processor fan
4. Install the:
a) I/O board
b) video card
c) video-card heat sink.
d) processor
e) heatsink
f) palmrest
g) video-card fan
h) secondary memory
i) primary memory
j) primary and secondary hard drive
k) optical drive
l) keyboard
m) keyboard trim
n) base cover
o) battery
p) ExpressCard
q) SD card
5. Follow the procedures in After Working Inside Your Computer .
