Dell Precision M6800 - Installing the Display Assembly; Removing the Hinge Cover

Installing the Display Assembly

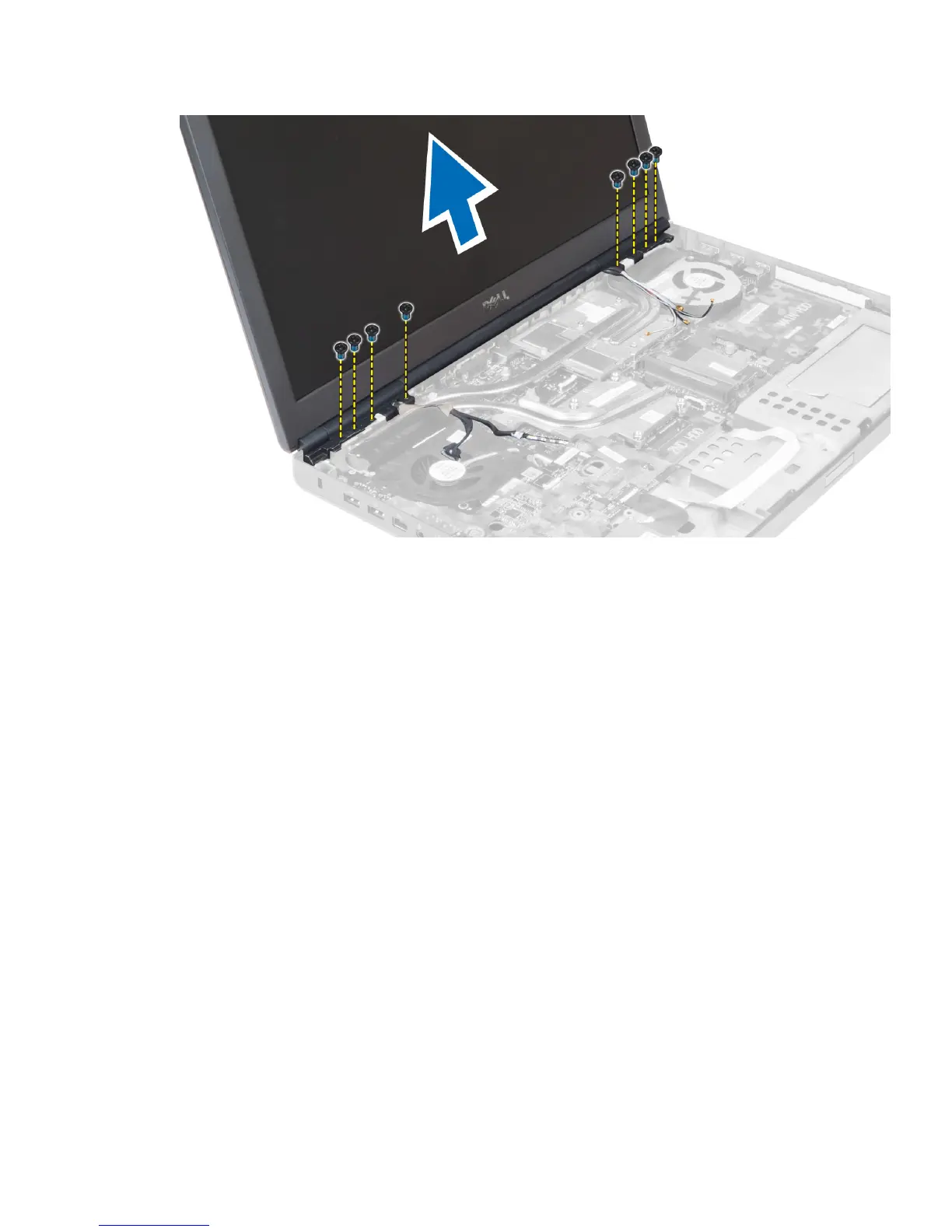

1. Tighten the screws to secure the display assembly in place.
2. Connect the camera and LVDS cables to the correct connectors on the system board.
3. Place the LVDS cable bracket on the computer and tighten the screws to secure it to the computer.
4. Route the cables through the routing channels.
5. Insert the wireless antenna cables through the routing hole on the chassis.
6. Tighten the screws at the bottom and back of the computer.
7. Route and connect the antenna cables to their connectors.
8. Install the:
a) palmrest
b) primary and secondary hard drive
c) optical drive
d) keyboard
e) keyboard trim
f) base cover
g) battery
9. Follow the procedures in After Working Inside Your Computer .
Removing the Hinge Cover
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the:
a) battery
51
