Dell Precision M6800 - Page 50

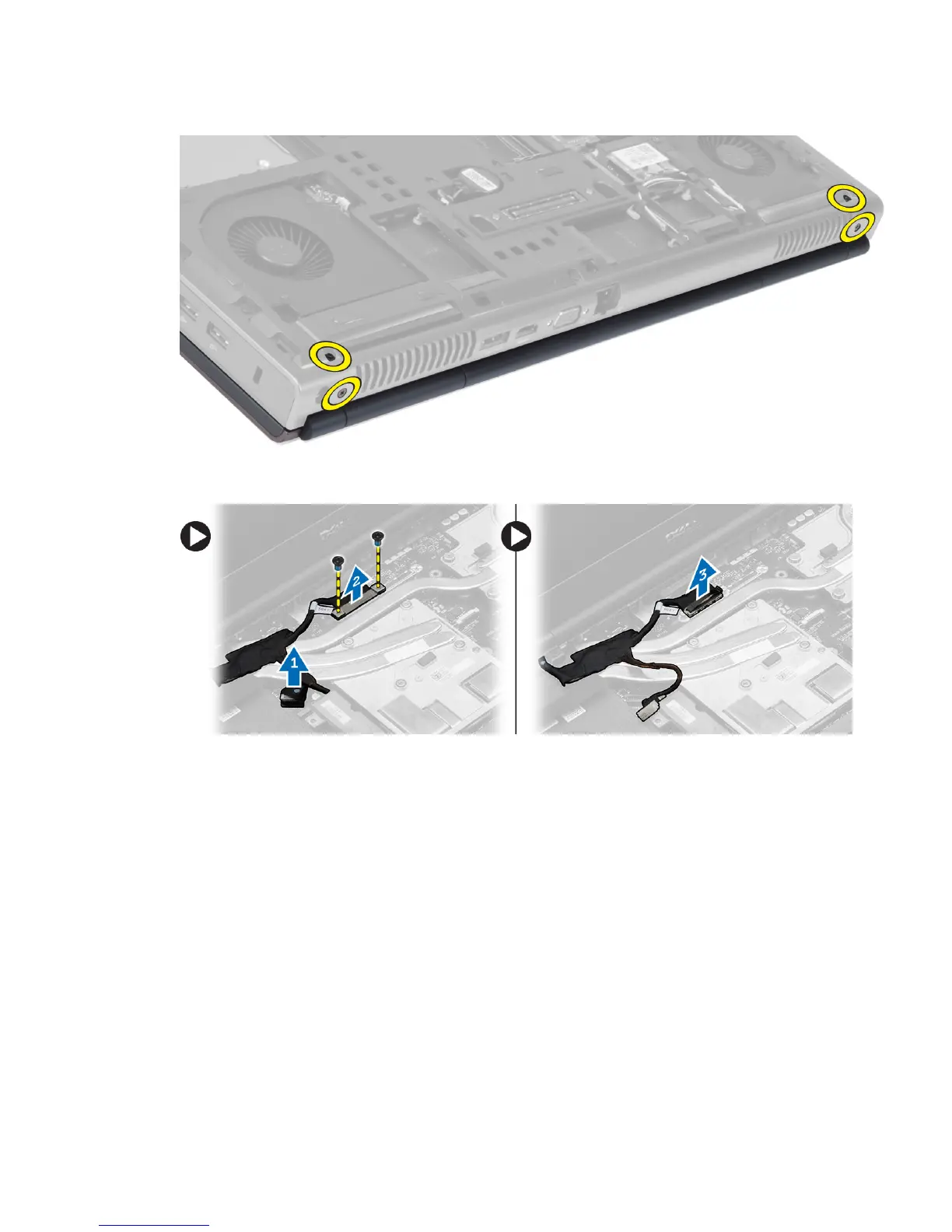

5. Flip the computer and remove the screws from the bottom and back of the computer.
6. Remove the screw that secures the low-voltage differential signalling (LVDS) cable bracket. Remove the LVDS
cable bracket and disconnect the LVDS and camera cable from the system board.
7. Remove the screws that secure the display assembly to the computer. Remove the display assembly from the
computer.
50
