Installing the Video-Card Fan
1. Connect the video-card fan cable.
2. Insert the video-card fan into its slot and tighten the screws to secure it to the computer.
3. Install the:
a) base cover
b) battery
4. Follow the procedures in
After Working Inside Your Computer.
Removing the Keyboard Trim
1. Follow the procedures in
Before Working Inside Your Computer
.
2. Remove the battery.

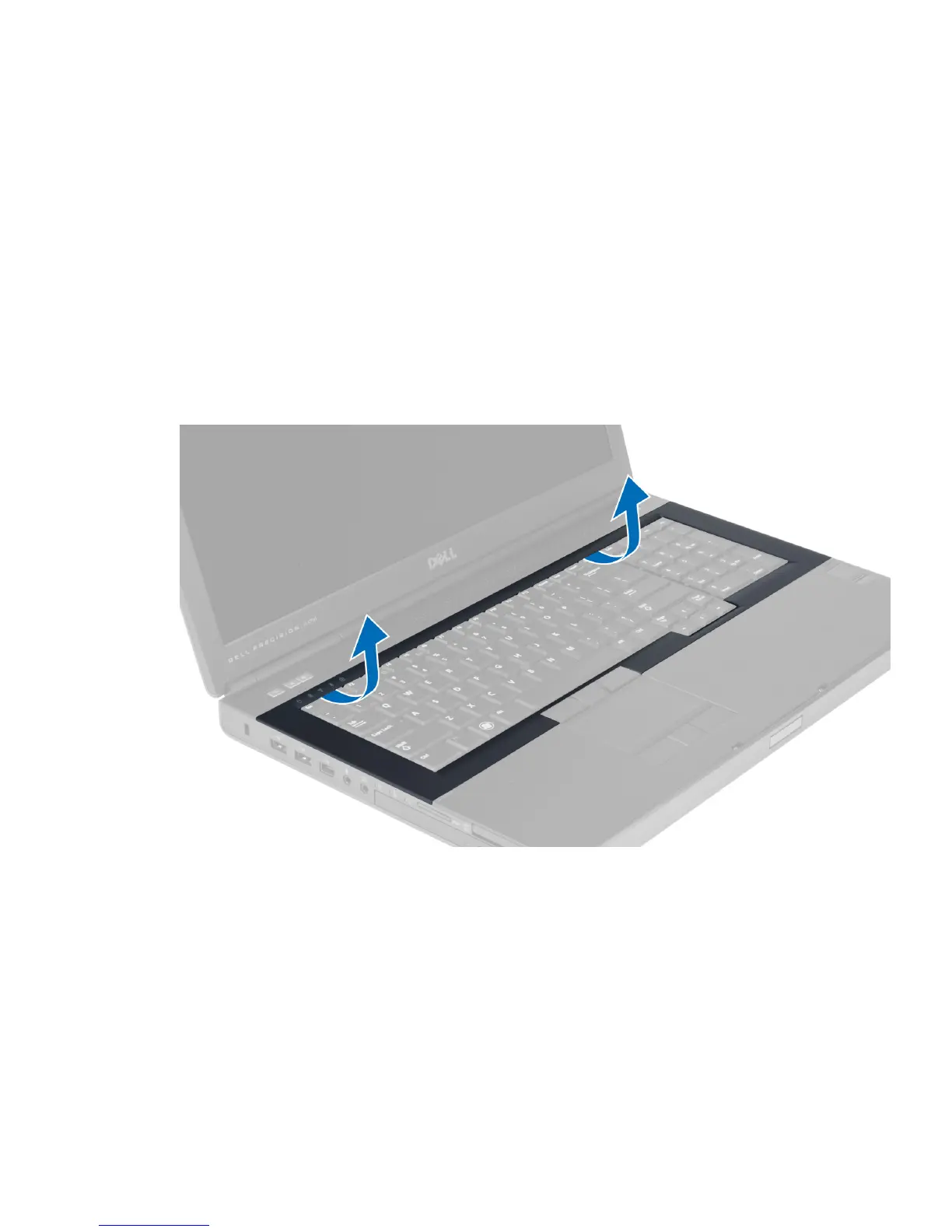

3. Pry up the keyboard trim starting from the top-inner edge.
23
