Dell Precision Mobile Workstation M6700 - Removing the Display Assembly

Removing the Display Assembly
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the:
a) battery
b) base cover
c) keyboard trim
d) keyboard
e) optical drive
f) primary and secondary hard drive
g) palmrest

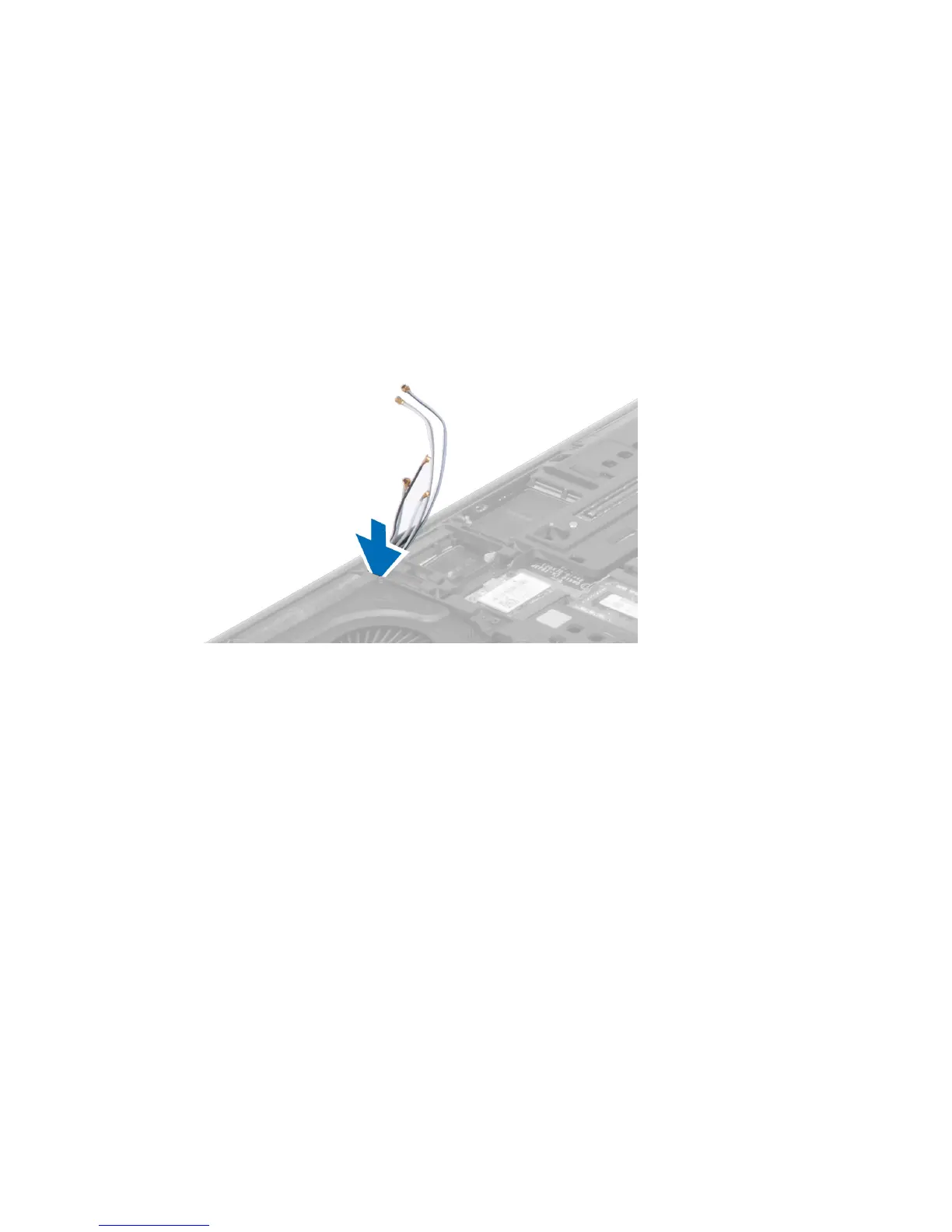

3. Disconnect the antenna cables from the wireless cards, and push them down the routing hole.
