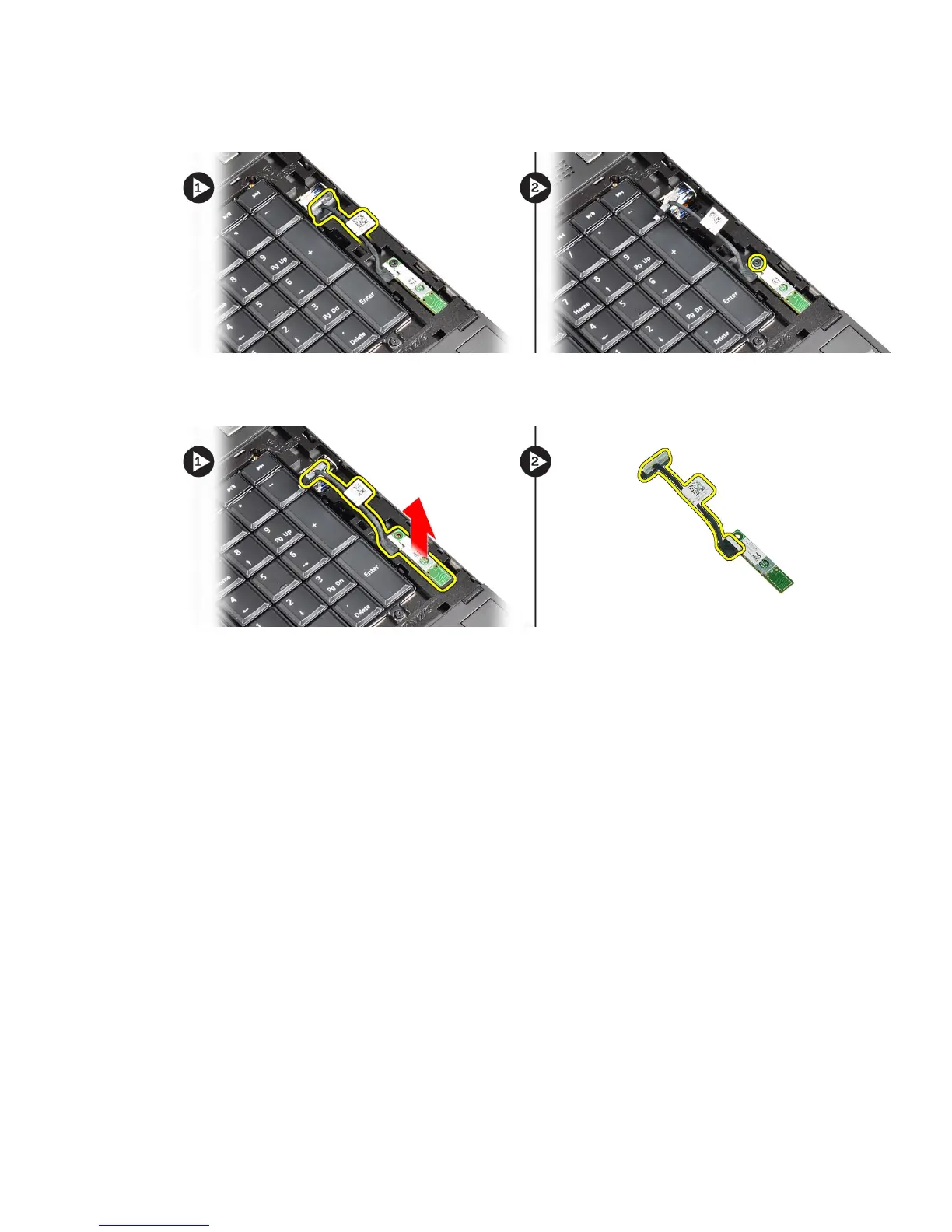

3. Disconnect the bluetooth cable from the system board and remove the screw that secures the bluetooth module
from the computer.
4. Perform the following steps:
a) Remove the bluetooth module from the palmrest.
b) Disconnect and remove the bluetooth cable from the bluetooth module.
Installing the Bluetooth Module
1. Connect the bluetooth cable to the bluetooth module.
2. Place the bluetooth module on the palmrest.
3. Tighten the screw to secure the bluetooth module on its place.
4. Connect the bluetooth-module cable to the system board.
5. Install the:
a) keyboard trim
b) battery
6. Follow the procedures in After Working Inside Your Computer .
Removing the Keyboard
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the:
a) battery
b) keyboard trim
26
