Dell Precision Mobile Workstation M6700 - Removing the Power-Connector Port

6. Install the:
a) I/O board
b) video card
c) video-card heat sink.
d) processor
e) heatsink
f) palmrest
g) video-card fan
h) secondary memory
i) primary memory
j) primary and secondary hard drive
k) optical drive
l) keyboard
m) keyboard trim
n) base cover
o) battery
p) ExpressCard
q) SD card
7. Follow the procedures in After Working Inside Your Computer .
Removing the Power-Connector Port
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the:
a) battery
b) base cover
c) keyboard trim
d) keyboard
e) optical drive
f) primary and secondary hard drive
g) palmrest
h) I/O board
i) display assembly

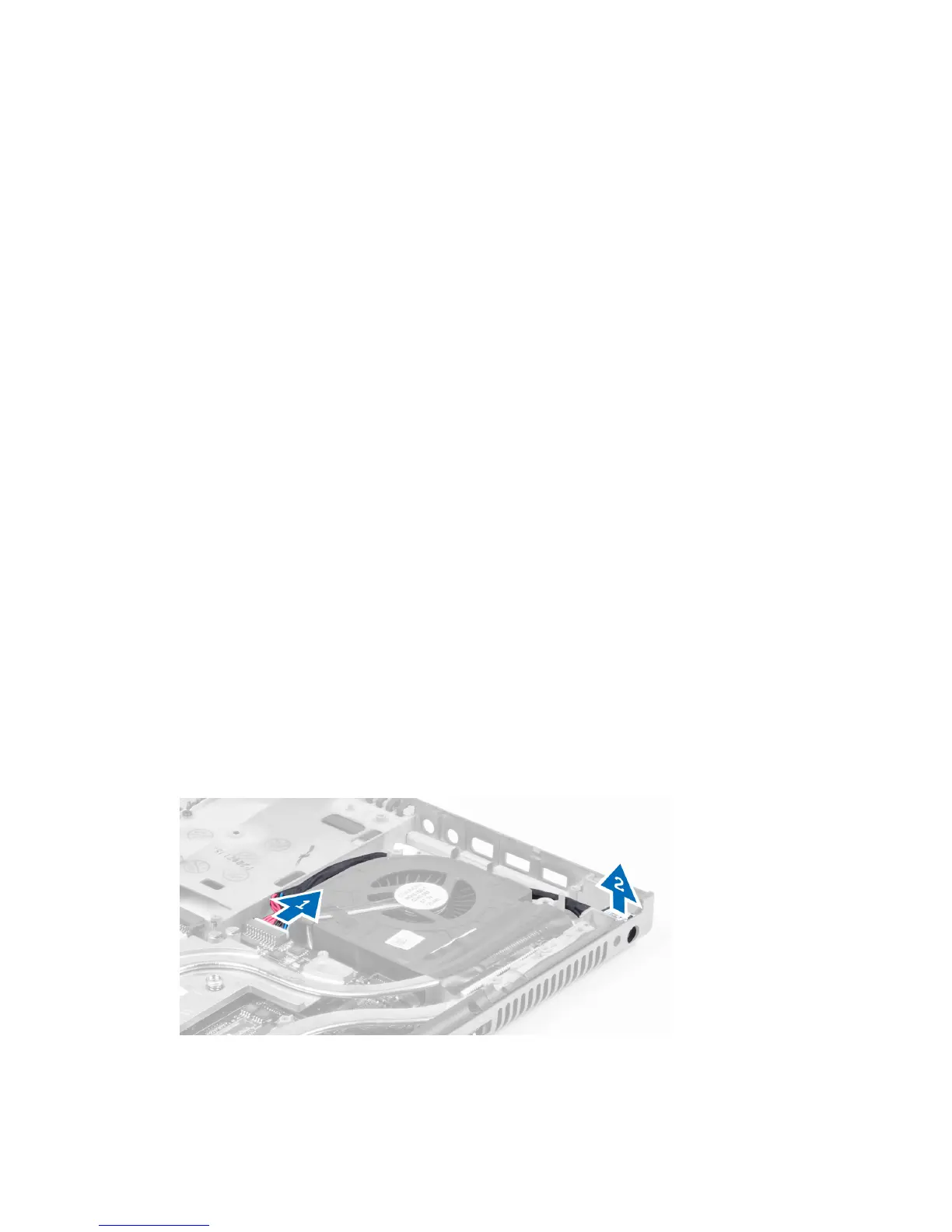

3. Disconnect the power-connector cable from the system board and remove the power connector port from the
computer.
60
