Dell Precision Mobile Workstation M6700 - Installing the Display Panel; Removing the Palmrest

Installing the Display Panel
1. Align the display brackets to the display panel.
2. Tighten the screws to secure the display brackets to the display panel.
3. Connect the LVDS cable and affix the adhesive tape.
4. Align the display panel in its original position on the computer.
5. Tighten the screws to secure the display panel to the display assembly.
6. Install the:
a) display bezel
b) battery
7. Follow the procedures in After Working Inside Your Computer .
Removing the Palmrest
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the:
a) battery
b) base cover
c) keyboard trim
d) keyboard
e) optical drive
f) primary hard drive
g) secondary hard drive

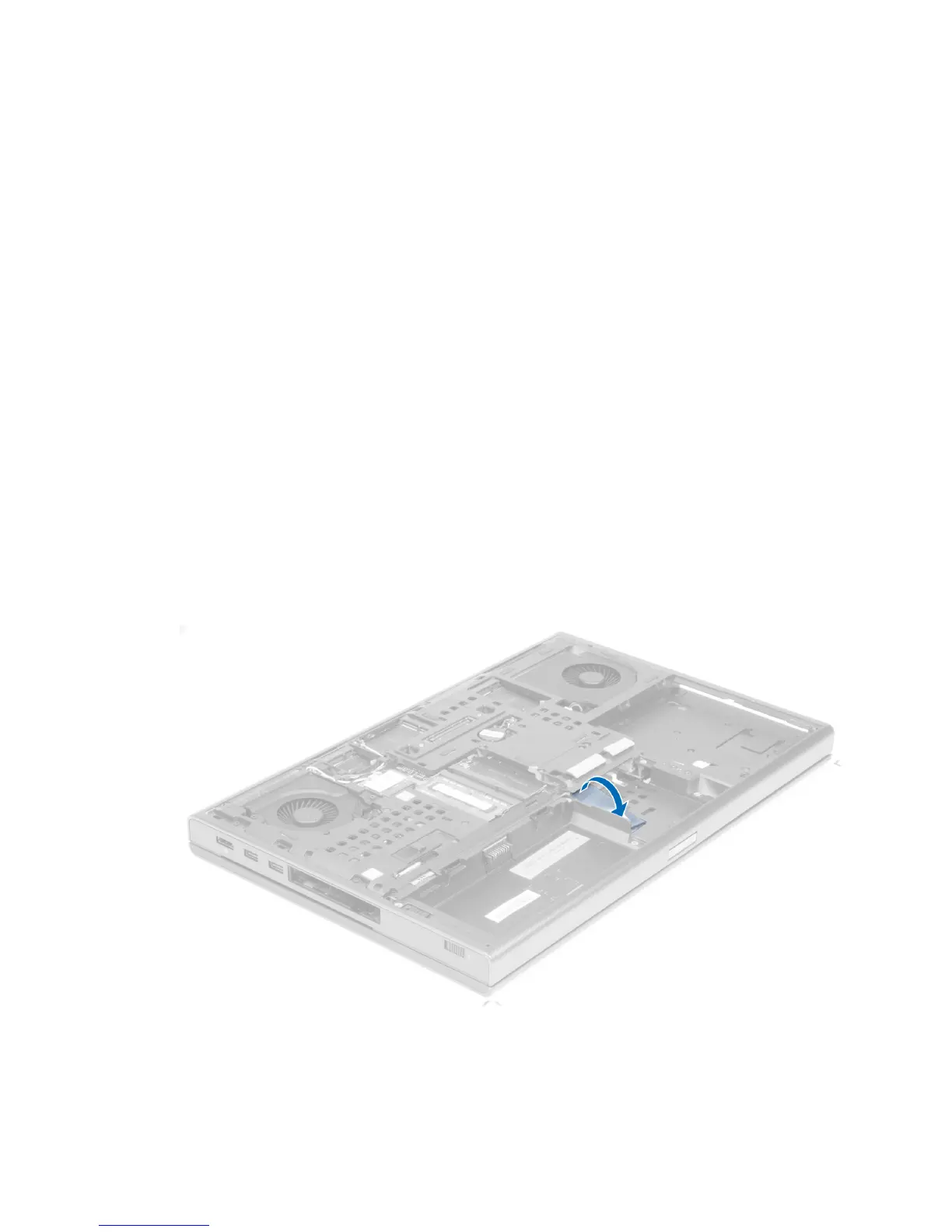

3. Peel back the adhesive tape that secures the smart card cable to the computer.
