Dell Precision Mobile Workstation M6700 - Removing the Input;Output (I;O) Board

3. Install the:
a) heatsink
b) video-card heat sink
c) video-card fan
d) palm rest
e) primary and secondary hard drive
f) optical drive
g) keyboard
h) keyboard trim
i) base cover
j) battery
4. Follow the procedures in After Working Inside Your Computer.
Removing the Input/Output (I/O) Board
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the:
a) SD card
b) battery
c) base cover
d) keyboard trim
e) keyboard
f) optical drive
g) primary and secondary hard drive
h) palmrest

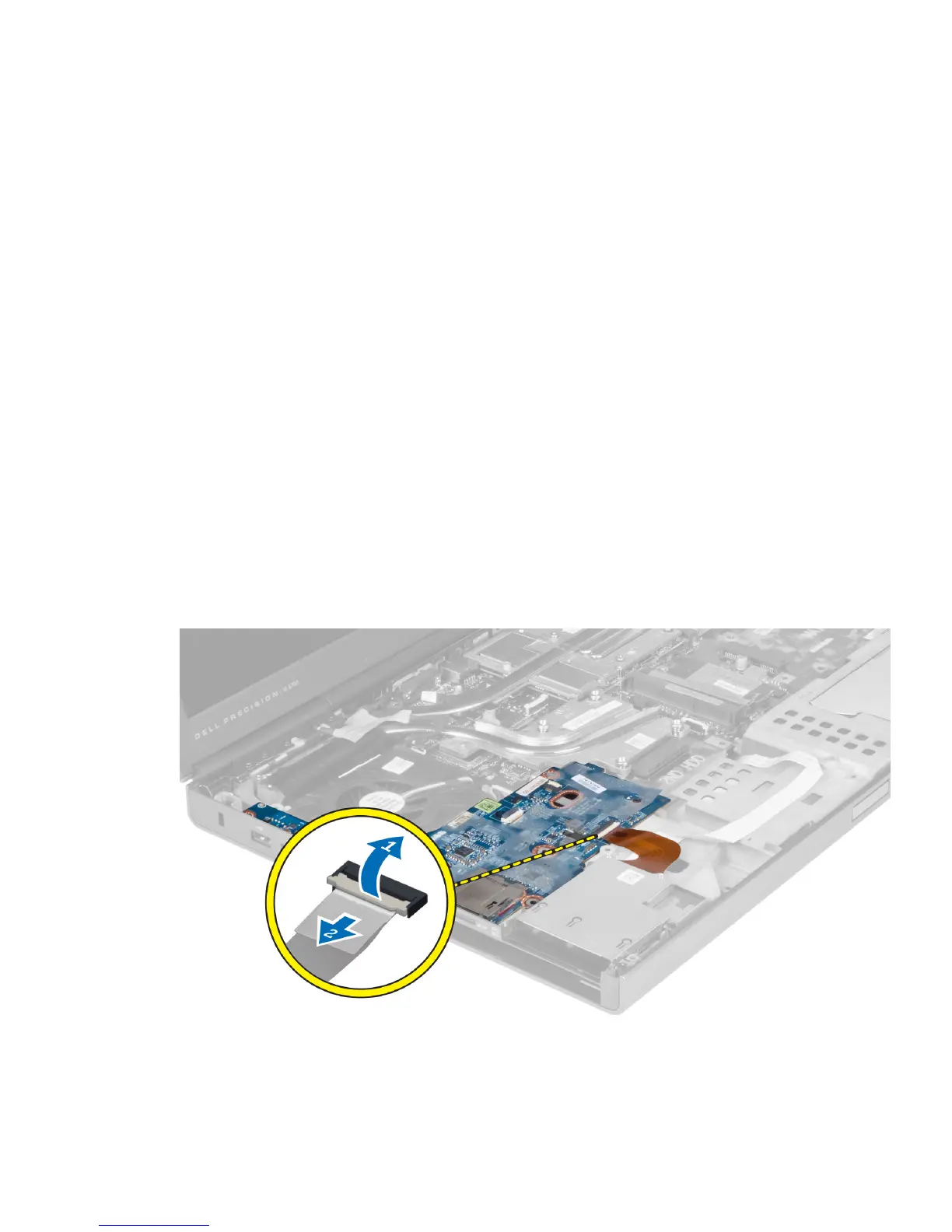

3. Disconnect the ExpressCard module connector from the I/O board.
