Dell Precision Mobile Workstation M6700 - Removing the System Board

Removing the System Board
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the:
a) SD card
b) ExpressCard
c) battery
d) base cover
e) keyboard trim
f) keyboard
g) optical drive
h) primary and secondary hard drive
i) primary memory
j) secondary memory
k) video-card fan
l) palmrest
m) heatsink
n) processor
o) video-card heatsink.
p) video card
q) I/O board
r) display assembly

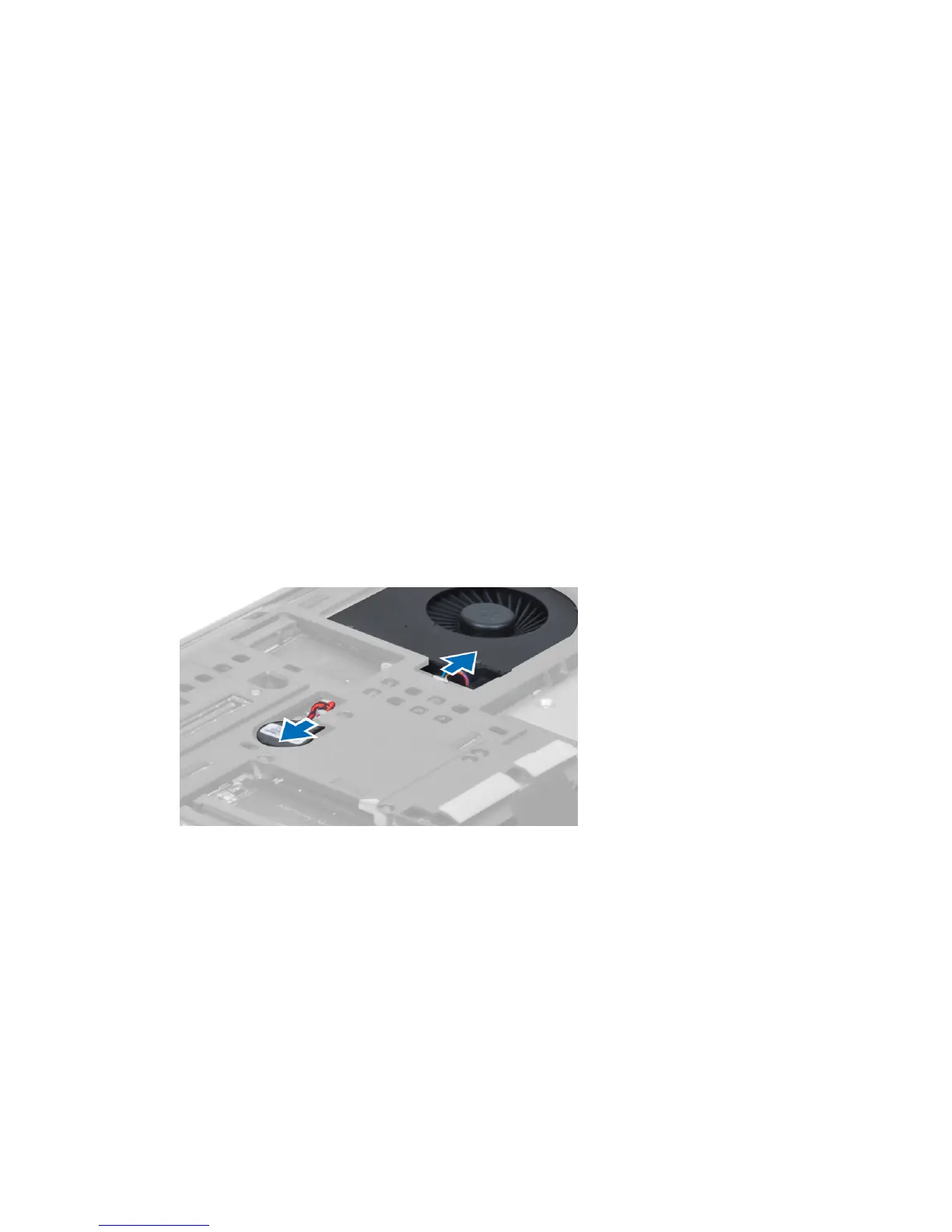

3. Disconnect the processor-fan cable and the coin-cell battery cable from the system board.
