Dell Precision Mobile Workstation M6700 - Page 52

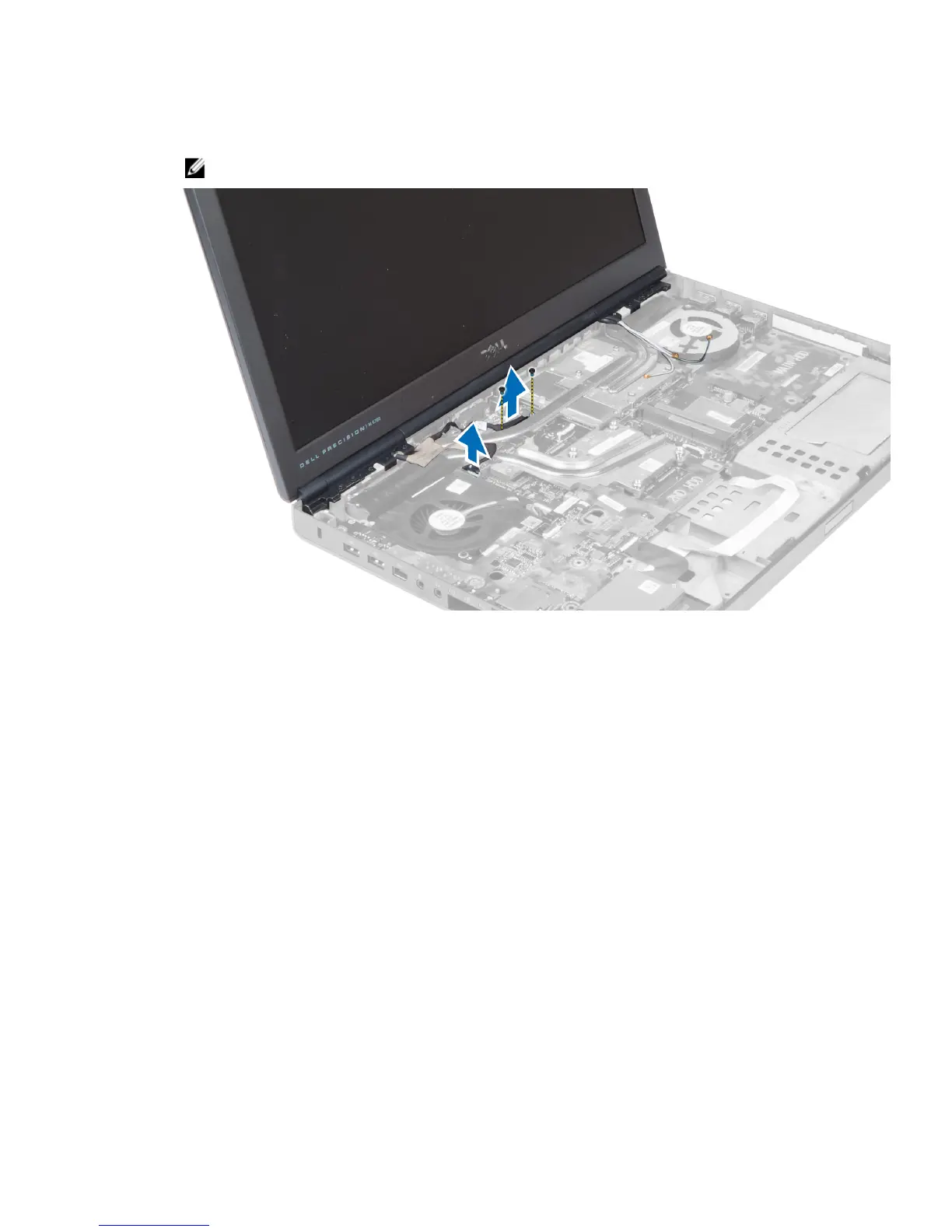

6. Remove the screws that secure the low-voltage differential signalling (LVDS) cable bracket. Remove the LVDS
cable bracket and disconnect the LVDS cable and camera cable from the system board.
NOTE: LVDS cable is available in M4700 without the bracket. LVDS cable bracket is available only in M6700.
52
