Dell Precision Mobile Workstation M6700 - Page 58

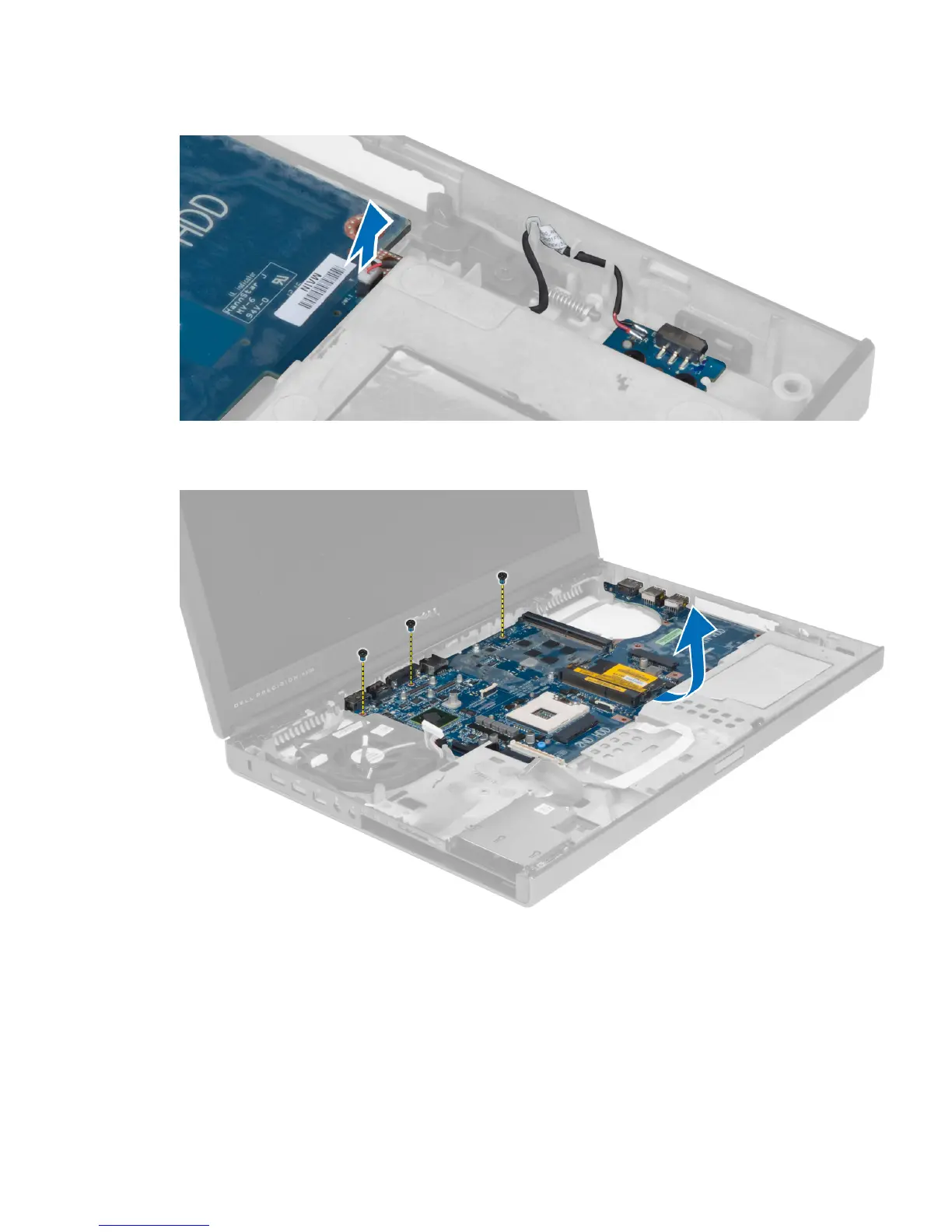

6. Disconnect the switch board cable from the system board.
7. Remove any mini-cards (if available).
8. Remove the screws that secure the system board to the computer and lift the bottom edge of the system board at a
20–degree angle.
58
