22 | Preparing Printer Hardware

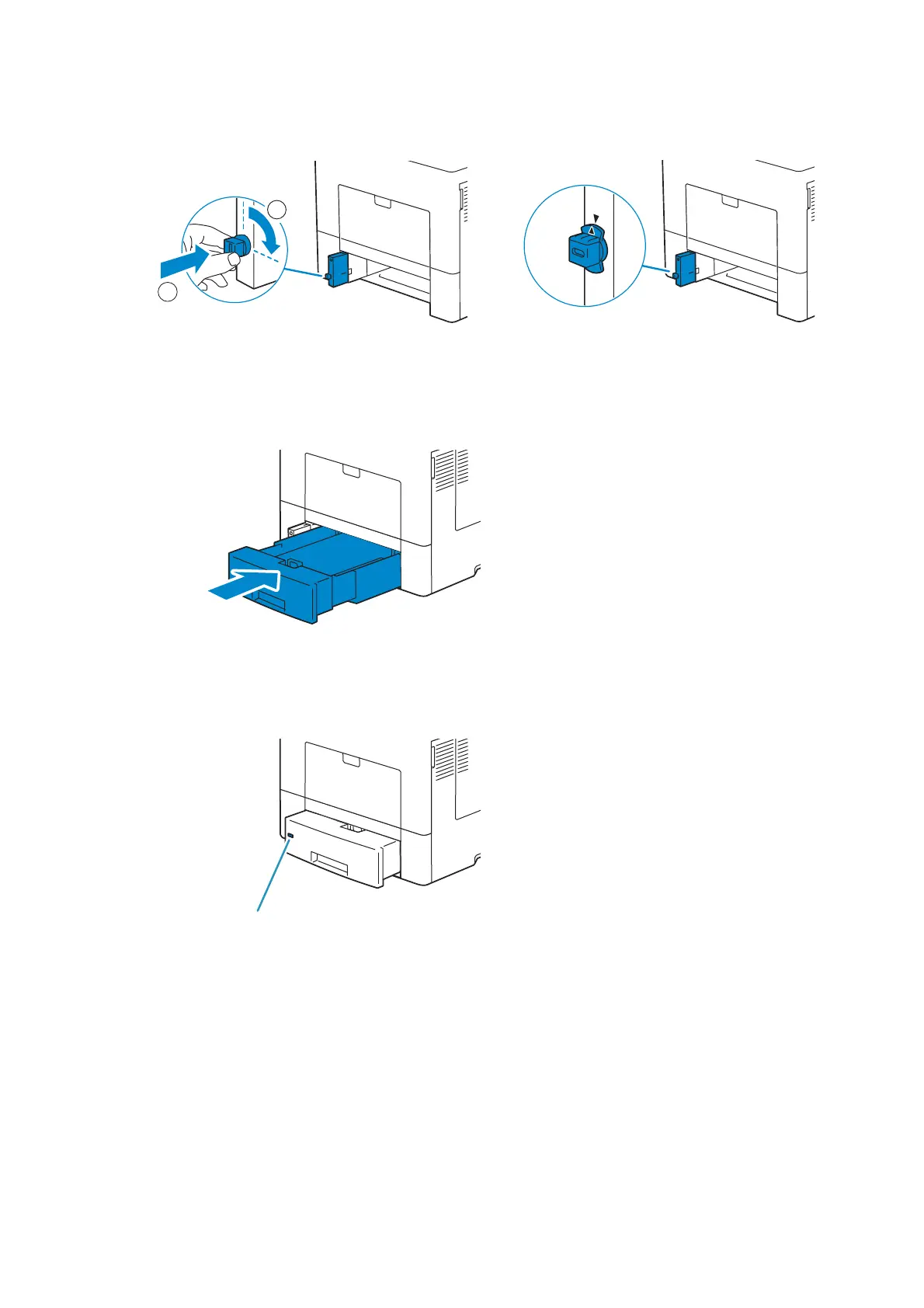

4 Push and rotate the stopper 90 degrees clockwise until the triangle on the stopper
aligns with the one marked on the extender body.
5 Insert the tray into the printer, and push until it stops.
6 Attach the Kensington lock to the security slot.
1
2
Security slot
