LED behavior
The following S4100–ON Series switch LED behavior displays during open networking installation environment (ONIE) operations:

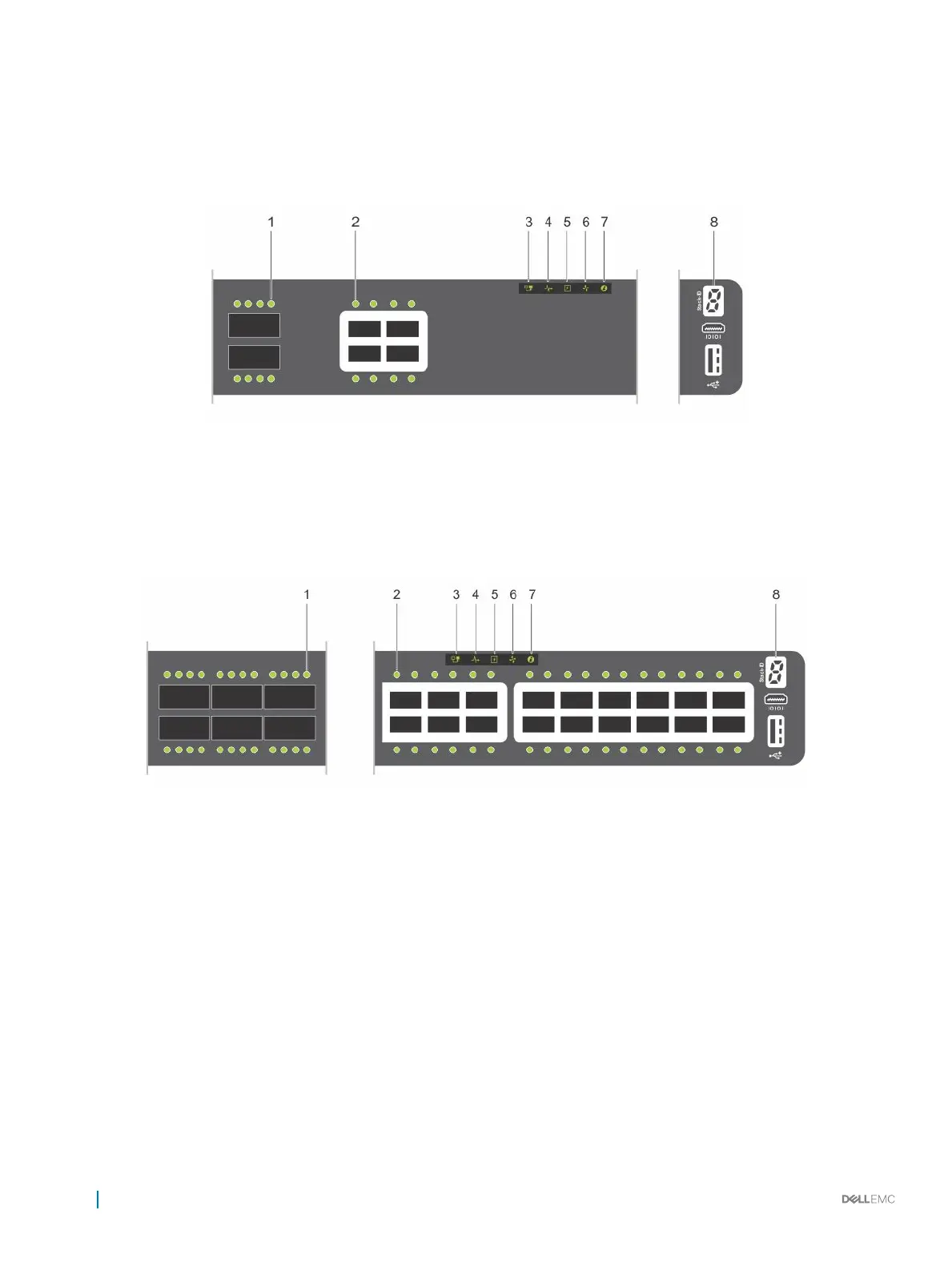

Figure 5. S4128F-ON I/O-side LEDs
1 QSFP28 port activity LEDs 2 Link (left), activity (right) port LEDs
3 Master LED 4 System LED
5 Power LED 6 Fan LED
7 Locator LED/System beacon 8 Stack ID
Figure 6. S4148F-ON I/O-side LEDs
1
QSFP28 port activity LEDs 2 Link/activity port LEDs
3 Master LED 4 System LED
5 Power LED 6 Fan LED
7 Locator LED/System beacon 8 Stack ID
10 S4100–ON Series switch
