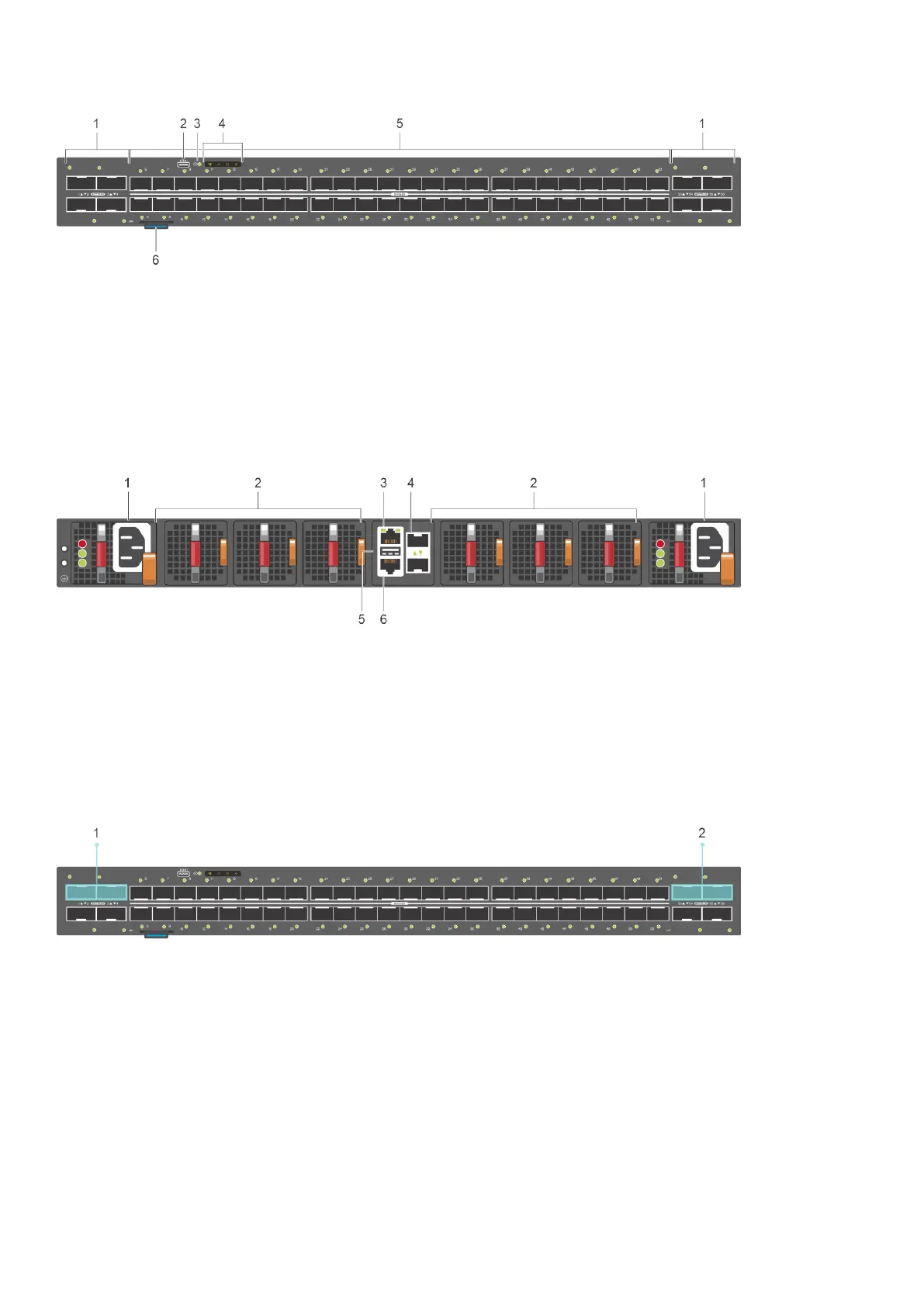

1. Eight 400 GbE QSFP56-DD ports 2. Micro-USB Type-B port
3. Reset 4. Status icons
5. Forty-eight 100 GbE SFP56-DD ports 6. Luggage tag
The S5448F-ON switch has one RJ45 serial console port, one 10/100/1000 Base-T Ethernet management port, and one USB
type-A port for the external storage. The BMC manages system thermal monitoring and fan control. Management ports are on
the PSU-side of the switch.
The S5448F-ON switch PSU-side view:
1. AC PSUs 2. Fan modules
3. RJ45 Ethernet port 4. Two 10 GbE SFP+ ports
5. USB Type-A port 6. RJ45 console port
20W optic port locations
The ports supporting 20W optics are as follows:
1. 20W: Ports 1 and 3
2. 20W: Ports 53 and 55
Features
The S5448F-ON switch offers the following features:
● Eight 400 GbE QSFP56-DD ports
● Forty-eight 100 GbE SFP56-DD ports
● Two 10 GbE SFP+ ports
● One RJ45 console port
8
The S5448F-ON switch
