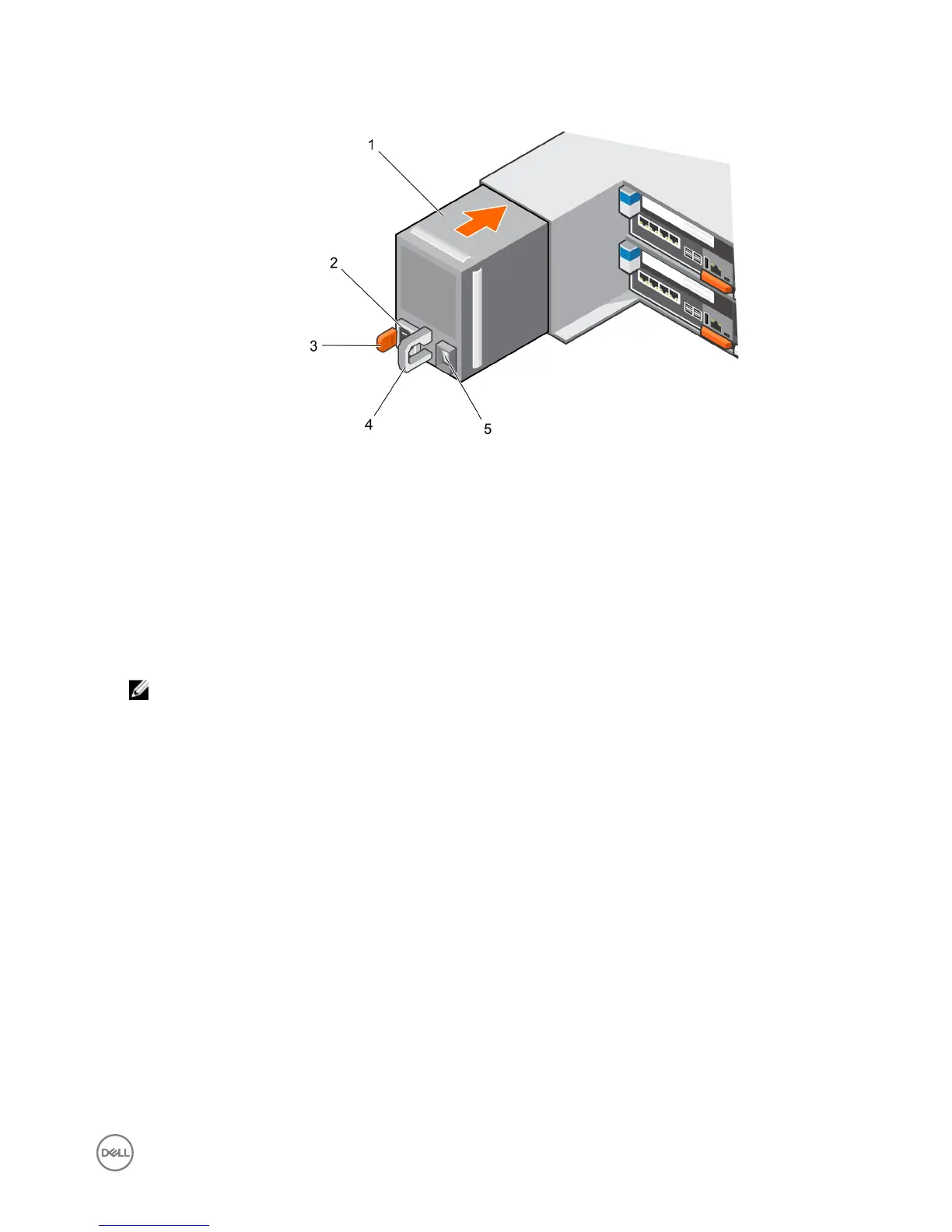

Figure 13. Removing a Power Supply/Cooling Fan Module
1. Power supply/cooling fan module 2. Power socket
3. Release tab 4. Power supply/cooling fan module LED handle
5. Power switch
4. Slide the replacement power supply/cooling fan module into the chassis until it is fully seated and the release tab clicks into
place.
5. Connect the power cable to the power supply/cooling fan module and make sure the cable is plugged into a power outlet.
6. Secure the power cable using the hook-and-loop strap.
7. Press the power switch on the power supply/cooling fan module to turn it on.
NOTE: Allow several seconds for the storage system to recognize the power supply/cooling fan module and
determine its status. When the power supply/cooling fan module is functioning properly, the AC power status
indicator turns green and the power supply/cooling fan status indicator is o.
8. In Dell Storage Manager, make sure that the replacement power supply is recognized and shows as up and running.
Next step
1. Use Dell Storage Manager to edit the Storage Center settings and set the operation mode of the Storage Center to Normal
mode.
2. Use Dell Storage Manager to send SupportAssist information to Dell Technical Support.
Replacing SCv3000 and SCv3020 Storage System Components
19

Dell SCv3000 Specifications

General

HDD speed	10000 RPM
Storage drive size	3.5 \
Storage drive capacity	900 GB
Storage drive interface	Serial Attached SCSI (SAS)
Storage drives installed	Yes
Installed storage drive type	HDD
Total installed storage capacity	6.3 TB
Maximum supported storage capacity	- TB
Number of storage drives installed	7
Number of storage drives supported	16
USB connectivity	-
Chassis type	Rack (3U)
Product color	Black, Grey
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power supply unit (PSU) capacity	1485 W
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 80 %
Dell E-Value Code	SCv3000FC

Weight and Dimensions

Depth	785 mm
Width	445 mm
Height	133.3 mm
