Item Name Icon Description
• The identication LED blinks on the control panel of the chassis, to allow
users to nd the storage system when looking at the front of the rack.
• The identication LEDs on the storage controllers also blink, which allows
users to nd the storage system when looking at the back of the rack.
4 Hard drives — Can have up to 30 internal 2.5-inch SAS hard drives
SCv3000 and SCv3020 Storage System Back-Panel View
The back panel of the storage system contains the storage controller indicators and power supply indicators.

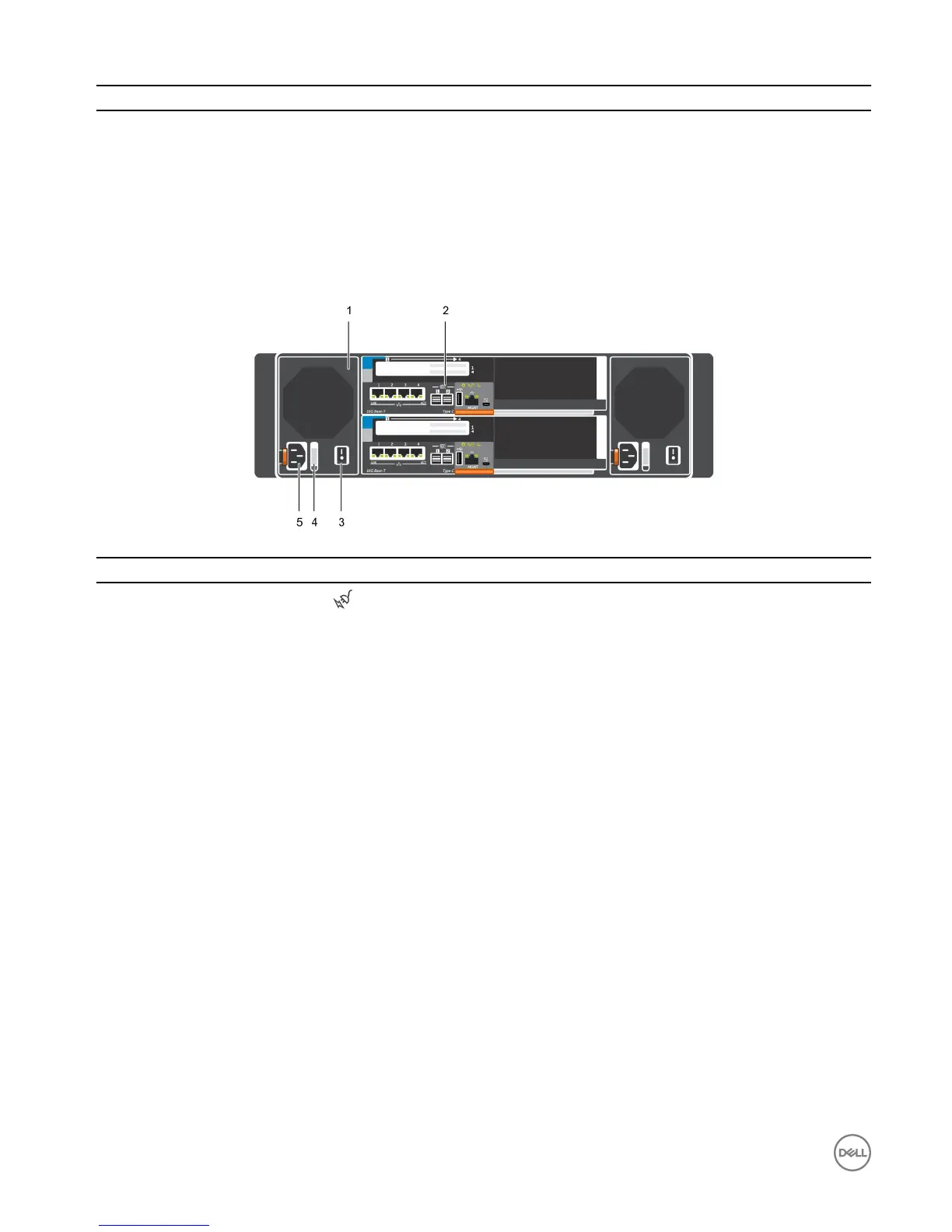

Figure 2. SCv3000 and SCv3020 Storage System Back-Panel View
Item
Name Icon Description
1 Power supply/cooling fan
module (2)
Contains a 1485 W power supply and fans that provide cooling for the storage
system, with AC input to the power supply of 200–240 V. In Dell Storage
Manager, the power supply/cooling fan module on the left side of the back
panel is Power Supply 1 and power supply/cooling fan module on the right side
of the back panel is Power Supply 2.
2 Storage controller (2) — Each storage controller contains:
• Optional 10 GbE iSCSI mezzanine card with four SFP+ ports or four RJ45
10GBASE-T ports
• One expansion slot for a front-end I/O card:
– Fibre Channel
– iSCSI
– SAS
• SAS expansion ports – Two 12 Gbps SAS ports for back-end connectivity
to expansion enclosures
• USB port – Single USB 2.0 port
• MGMT port – Embedded Ethernet port for system management
• Serial port – Micro-USB serial port used for an alternative initial
conguration and support-only functions
3 Power switch (2) — Controls power for the storage system. Each power supply/cooling fan module
has one power switch.
4 Power supply/cooling fan
module LED handle
—
The handle of the power supply/cooling fan module indicates the DC power
status of the power supply and the fans.
• Not lit – No power
• Solid green – Power supply has valid power source and is operational
• Blinking amber – Error condition in the power supply
• Blinking green – Firmware is being updated.
6
SCv3000 and SCv3020 Storage System Hardware

Dell SCv3000 Specifications

General

HDD speed	10000 RPM
Storage drive size	3.5 \
Storage drive capacity	900 GB
Storage drive interface	Serial Attached SCSI (SAS)
Storage drives installed	Yes
Installed storage drive type	HDD
Total installed storage capacity	6.3 TB
Maximum supported storage capacity	- TB
Number of storage drives installed	7
Number of storage drives supported	16
USB connectivity	-
Chassis type	Rack (3U)
Product color	Black, Grey
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power supply unit (PSU) capacity	1485 W
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 80 %
Dell E-Value Code	SCv3000FC

Weight and Dimensions

Depth	785 mm
Width	445 mm
Height	133.3 mm
