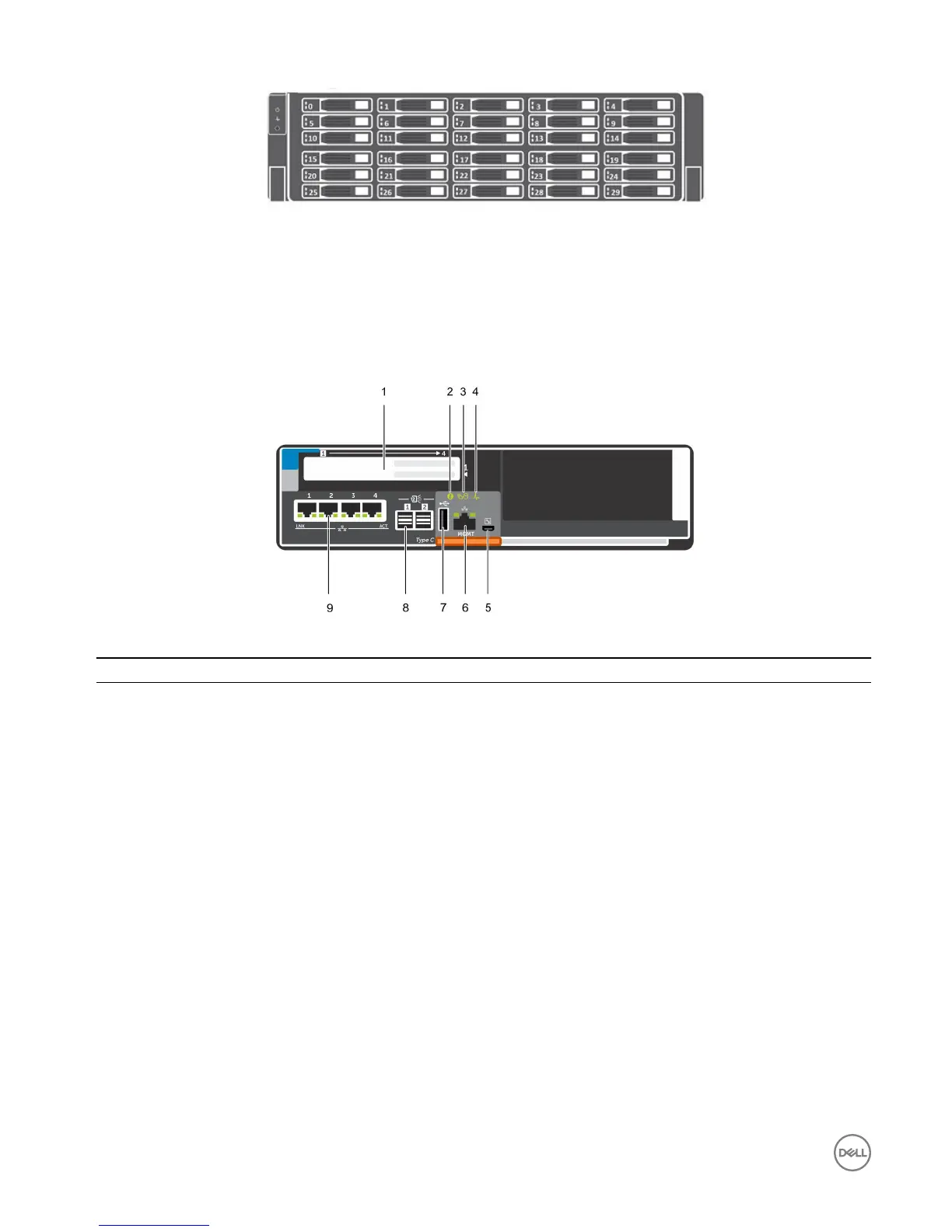

Figure 5. SCv3020 Storage System Drive Numbering
SCv3000 and SCv3020 Storage Controller Features and Indicators
The SCv3000 and SCv3020 storage system includes two storage controllers in two interface slots.
SCv3000 and SCv3020 Storage Controller
The following gure shows the features and indicators on the storage controller.
Figure 6. SCv3000 and SCv3020 Storage Controller
Item
Control/Feature Icon Description
1 I/O card slot
Fibre Channel I/O card – Ports are numbered 1 to 4 from left to right
• The LEDs on the 16 Gb Fibre Channel ports have the following meanings:
– All o – No power
– All on – Booting up
– Blinking amber – 4 Gbps activity
– Blinking green – 8 Gbps activity
– Blinking yellow – 16 Gbps activity
– Blinking amber and yellow – Beacon
– All blinking (simultaneous) – Firmware initialized
– All blinking (alternating) – Firmware fault
• The LEDs on the 32 Gb Fibre Channel ports have the following meanings:
– All o – No power
– All on – Booting up
– Blinking amber – 8 Gbps activity
– Blinking green – 16 Gbps activity
– Blinking yellow – 32 Gbps activity
– Blinking amber and yellow – Beacon
– All blinking (simultaneous) – Firmware initialized
– All blinking (alternating) – Firmware fault
8
SCv3000 and SCv3020 Storage System Hardware

Dell SCv3000 Specifications

General

HDD speed	10000 RPM
Storage drive size	3.5 \
Storage drive capacity	900 GB
Storage drive interface	Serial Attached SCSI (SAS)
Storage drives installed	Yes
Installed storage drive type	HDD
Total installed storage capacity	6.3 TB
Maximum supported storage capacity	- TB
Number of storage drives installed	7
Number of storage drives supported	16
USB connectivity	-
Chassis type	Rack (3U)
Product color	Black, Grey
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power supply unit (PSU) capacity	1485 W
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 80 %
Dell E-Value Code	SCv3000FC

Weight and Dimensions

Depth	785 mm
Width	445 mm
Height	133.3 mm
