Dell Studio 1735 - Removing the Charger Board; Replacing the Charger Board

Back to Contents Page
 Charger Board
Dell™Studio1735/1737ServiceManual
Removing the Charger Board
Replacing the Charger Board



Removing the Charger Board

1. Follow the procedures in Before You Begin.

2. Press and eject any installed cards from the ExpressCard slot and the 8-in-1 memory card reader.

3. Remove any installed memory modules and Mini-Cards (see Memory and Communication Cards).

4. Follow the instructions in Removing the System Board.


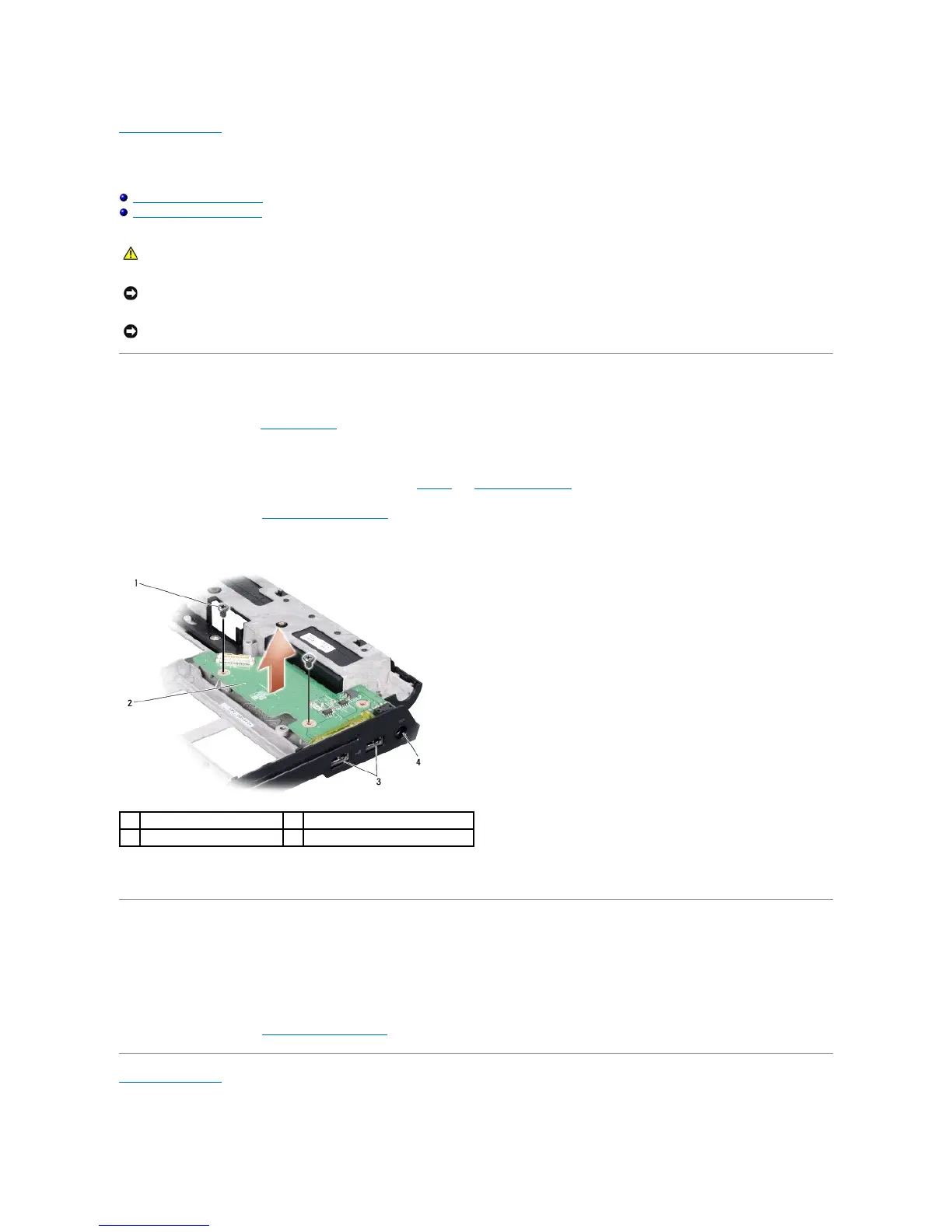

5. Remove the two screws that secure the charger board to the computer base.

6. Lift the charger board out of the computer base.
Replacing the Charger Board

1. Place the charger board in the computer base.

2. Replace the two screws that secure the charger board to the computer base.

3. Follow the instructions in Replacing the System Board.
Back to Contents Page

CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface
(such as a connector on the back of the computer).
NOTICE: To help prevent damage to the system board, you must remove the battery from the battery bay before you begin working inside the
computer.
1
screw (2)
2
charger board
3
USB connector (2)
4
AC adapter connector
