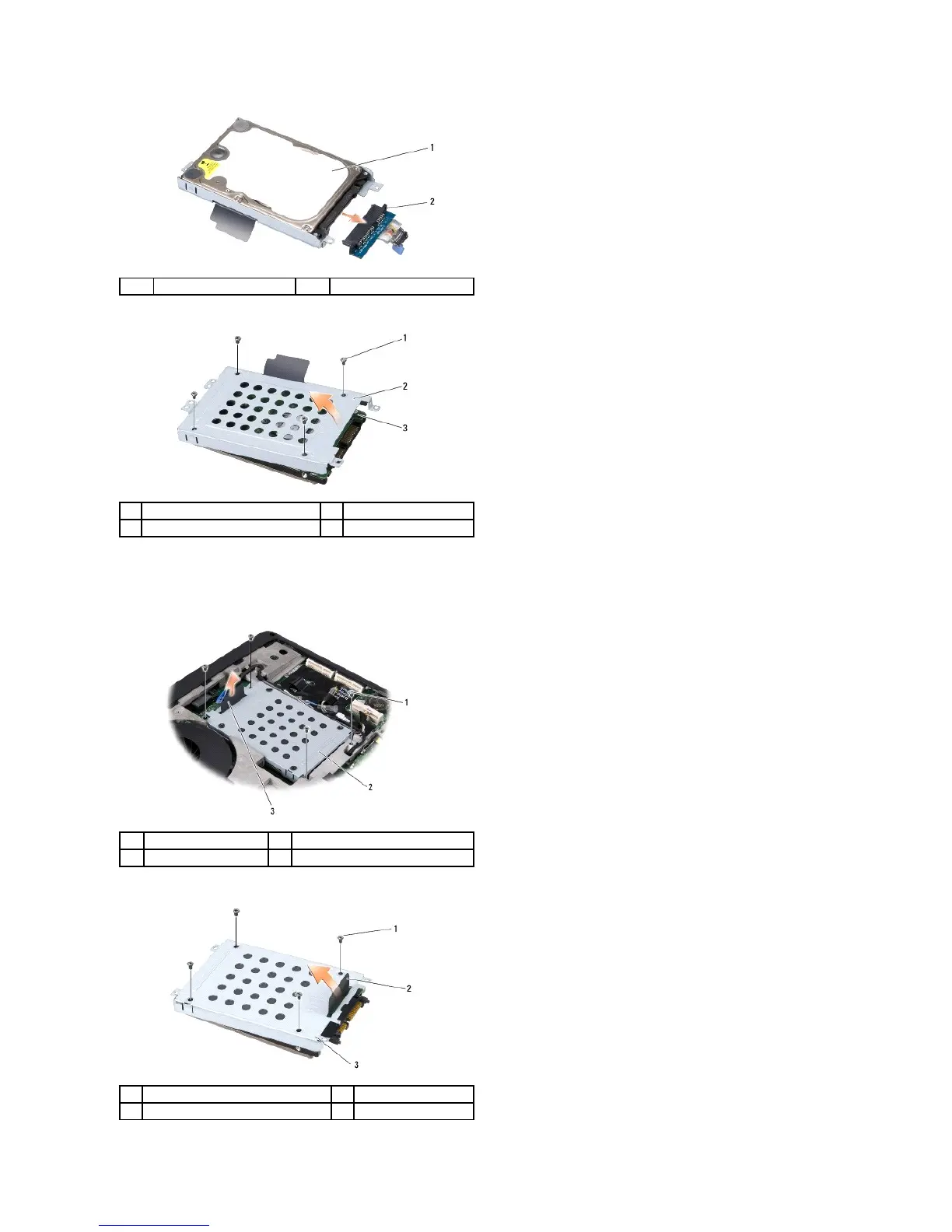

¡ Remove the four M3 x 3-mm screws securing the hard drive cage to the hard drive.
l For Hard Drive 2:
¡ Remove the four screws securing the hard drive assembly to the computer base.
¡ Pull the black pull-tab on the hard drive to disconnect the hard drive from the system board connector and to lift the hard drive assembly
out of the computer.
¡ Remove the four M3 x 3-mm screws securing the hard drive cage to the hard drive.
1
hard drive
2
interposer
1
M3 x 3-mm screws (4)
2
hard drive cage
3
hard drive


1
screws (4)
2
hard drive assembly
3
black pull-tab


1
M3 x 3-mm screws (4)
2
black pull-tab
3
hard drive cage


