Dell Vostro 1310 - Keyboard; Removing the Keyboard; Replacing the Keyboard

Back to Contents Page
 Keyboard
Service Manual
Removing the Keyboard
Replacing the Keyboard
Removing the Keyboard


1. Follow the procedures in Before Working on Your Computer.

2. Remove the hinge cover (see Removing the Hinge Cover).

3. Remove the two M2 x 3-mm screws at the top of the keyboard.


4. Lift the top of the keyboard and move it slightly towards the back of the computer to access the keyboard cable connector.

5. Rotate the retaining bracket upward to release the keyboard cable connector.

6. Slide the keyboard cable connector out of the keyboard connector on the system board.
Replacing the Keyboard


CAUTION: Before you begin any of the procedures in this section, follow the safety instructions that shipped with your computer.
NOTICE: The key caps on the keyboard are fragile, easily dislodged, and time- consuming to replace. Exercise care when removing and handling
the keyboard.
NOTE: Lift the keyboard carefully to ensure that you do not pull on the keyboard cable.
NOTE: Ensure that you pull on the keyboard cable connector, not the keyboard cable itself.

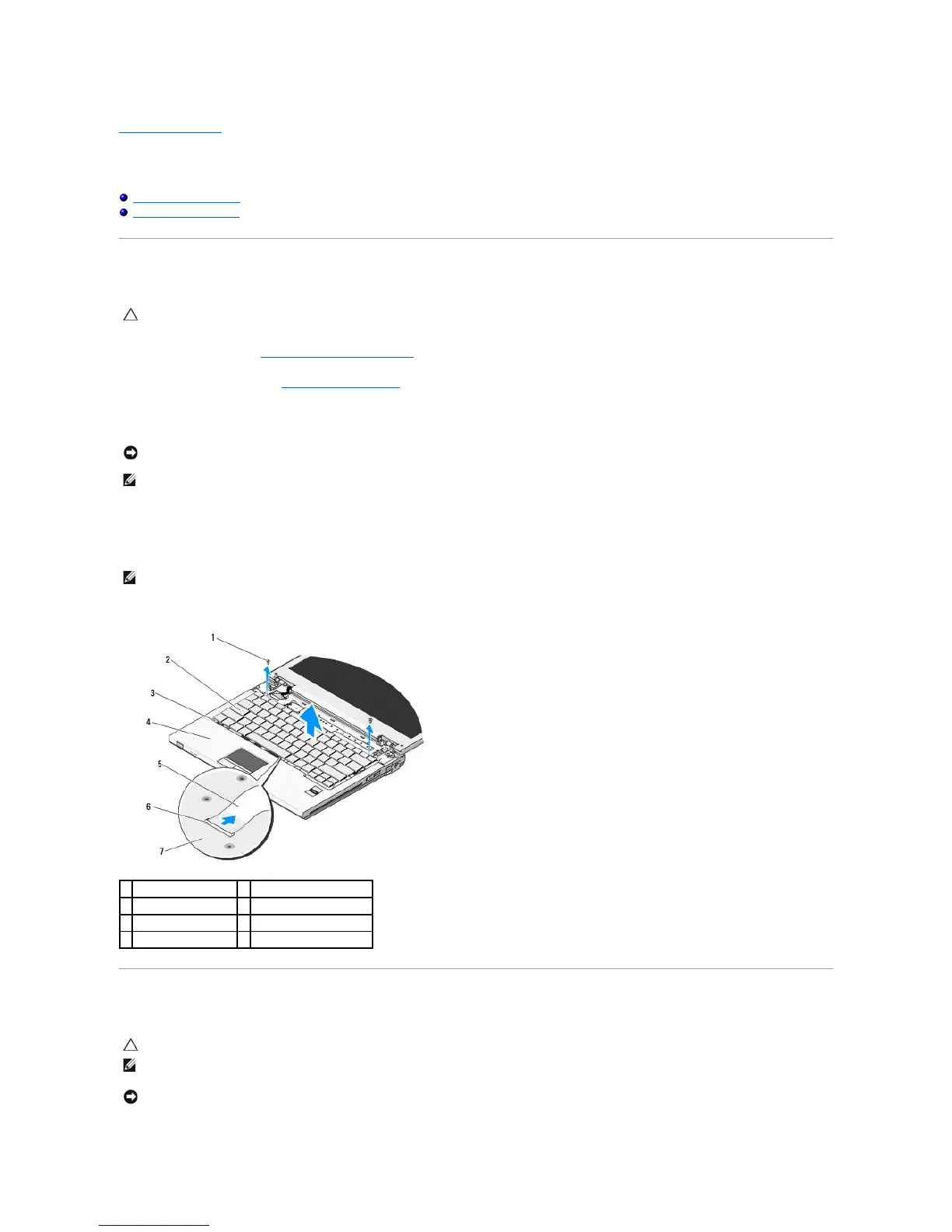

1
M2 x 3-mm screws (2)
2
keyboard
3
tabs (4)
4
palm rest
5
keyboard cable
6
keyboard cable connector
7
system board


CAUTION: Before you begin any of the procedures in this section, follow the safety instructions that shipped with your computer.
NOTE: This procedure assumes that you have completed the removal procedure first.
NOTICE: The key caps on the keyboard are fragile, easily dislodged, and time- consuming to replace. Exercise care when removing and handling
the keyboard.
