Display 71
FILE LOCATION: C:\Documents and Settings\sarah_cook\Desktop\Tsing
Ma\SM\A01\EN\Source\display.fm
DELL CONFIDENTIAL – PRELIMINARY 9/4/09 - FOR PROOF ONLY
8
Remove the M2 x 3-mm screw from the display inverter.
9
Disconnect the two display-inverter connectors.
10
Lift the display inverter out of the top cover.
NOTICE: Removal of the bezel from the display back cover requires extreme care
to avoid damage to the bezel.
Replacing the Display Inverter
CAUTION: Before you begin the following procedure, follow the safety
instructions that shipped with your computer.
This procedure assumes that you have completed the removal procedure
"Removing the Display Inverter" on page 70.
1
Connect the two display-inverter connectors to the display inverter.

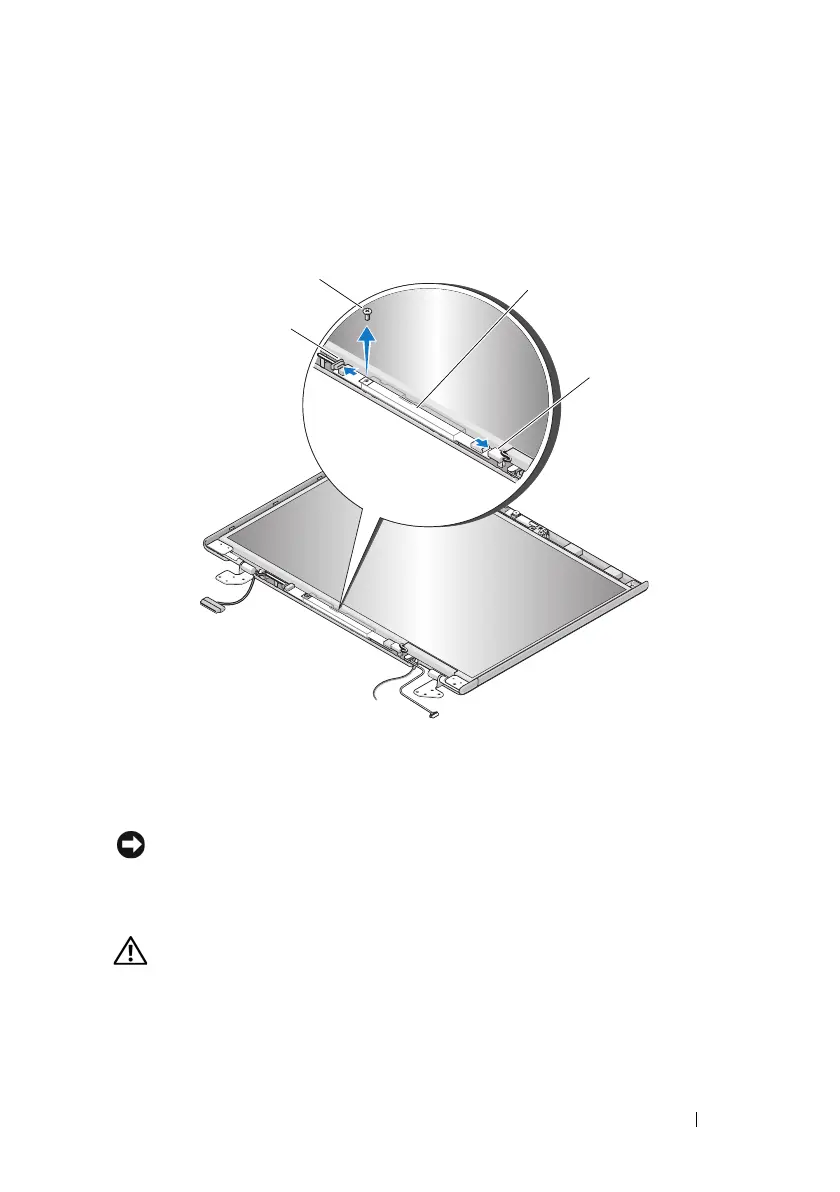

1 display inverter connector 2 M2 x 3-mm screw (1)
3 display inverter 4 display inverter connector
